Name: XCMG XC958 5.5-ton Wheel Loader with 162kW Weichai Engine and 3.0-3.2 m³ Bucket Capacity
Brand: Shandong Global Heavy Truck Import&Export Co.,Ltd
SKU: xc958
Price: 300.00 USD
Availability: InStock

Home Products Road Construction Machinery

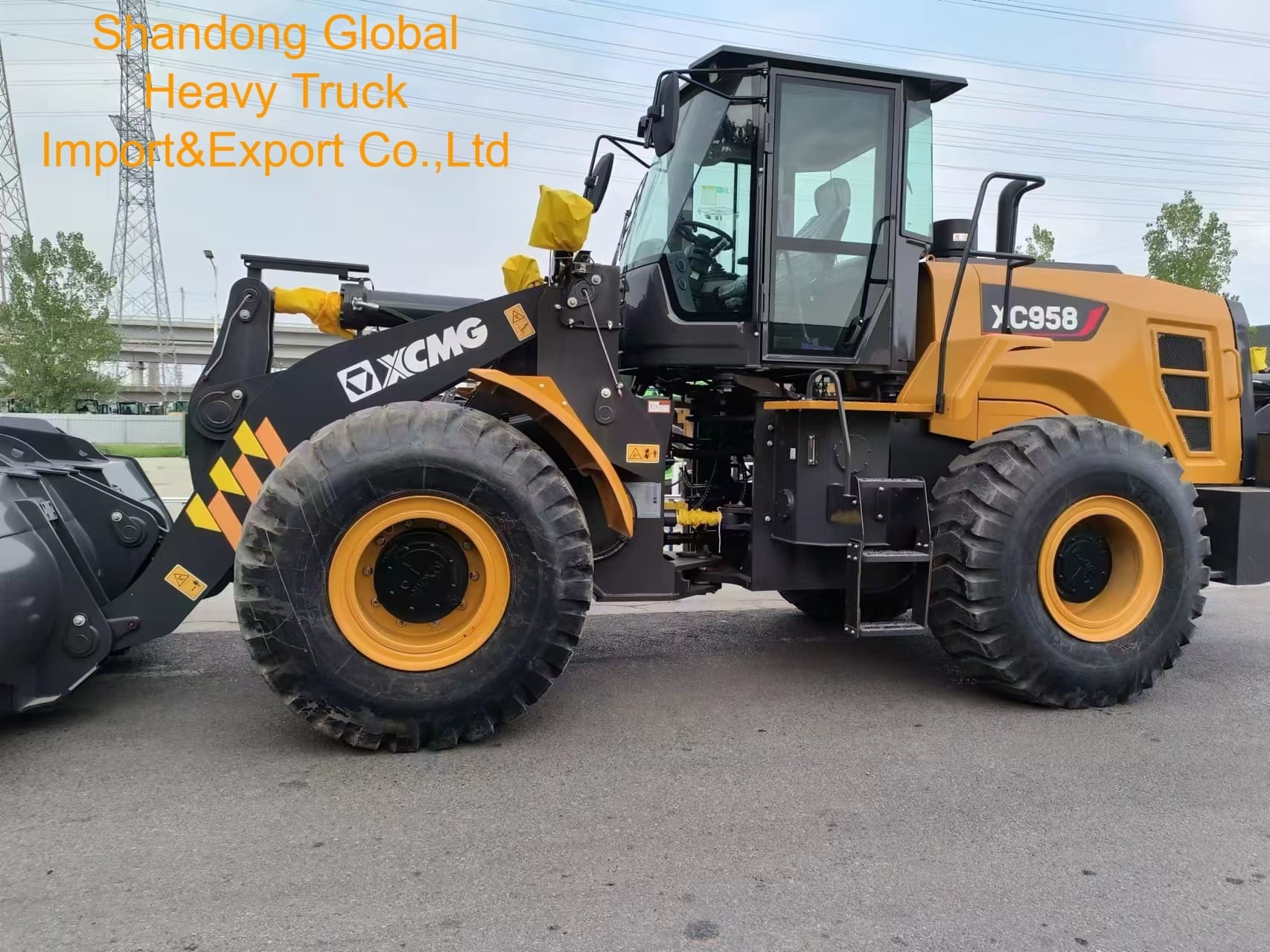

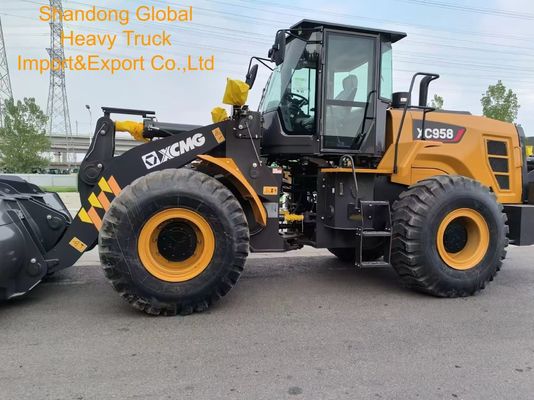

XCMG XC958 5.5-ton Wheel Loader with 162kW Weichai Engine and 3.0-3.2 m³ Bucket Capacity

Product Details:

Place of Origin:	China
Brand Name:	XCMG
Certification:	iso/ccc
Model Number:	xc958

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiation
Packaging Details:	Nude
Delivery Time:	30-45 work days
Payment Terms:	L/C,T/T
Supply Ability:	400 Unit/Units per month

Contact Now

Detailed Product Description

Model NO.:	XC958	Rated Load:	5 Ton
Transmission:	Hydraulic	Load And Unload Mode:	Front Discharge
Walking Mode:	Wheeled	Type:	Small Loader
Bucket Capacity:	3m3	Power:	162kw
SIZE:	8 085X2 963X3 463 Mm	Wheel Base:	3300mm

XCMG Factory Price 5-Ton Front Loader XC958 with Attachments for Your Choice on Sale

Product Overview

The XCMG XC958 is a new-generation 5.5-ton class wheel loader from XCMG's XC9 series, engineered for heavy-duty performance in mining, construction, quarrying, sand yards, ports, and bulk material handling. Combining high power, low fuel consumption, and exceptional comfort, this loader delivers maximum productivity with minimum operating costs. Available brand new at factory direct prices, with optional Euro V emission configuration for global compliance.

Key Specifications

Parameter	Details
Brand / Model	XCMG XC958 (XC9 series)
Condition	Brand new - in stock
Rated Load	5,500 kg - 5,800 kg (depending on variant)
Bucket Capacity	3.0 - 3.2 m³ standard; 2.5 - 5.0 m³ optional
Operating Weight	17,080 - 18,230 kg
Engine	Weichai high-pressure common-rail diesel engine
Engine Power	162 - 170 kW (approx. 217 - 228 HP)
Emission Standard	Tier 3 / China III (Euro V available on request)
Max Breakout Force	170 - 185 kN
Max Traction Force	165 kN
Total Cycle Time	≤ 10 seconds
Max Dumping Height	3,070 - 3,400 mm
Dumping Reach	1,100 - 1,240 mm
Wheelbase	3,350 mm (long wheelbase for stability)
Overall Dimensions (L × W × H)	8,410 × 2,996 × 3,455 mm
Tires	23.5-25-16PR (heavy-duty)
Fuel Tank	250 - 300 L
Hydraulic Tank	210 - 240 L
Gradeability	28°
Warranty	12 months or 2,000 hours

Key Features & Advantages

Powerful Weichai Engine - High-torque electronic control high-pressure common-rail engine with ECU-controlled fuel injection delivers high combustion efficiency, low fuel consumption, and low emissions. Three power modes (light load, medium load, heavy load) optimize fuel savings for any working condition.
XCMG Heavy-Duty Platform - Classic heavy-duty structural platform with long wheelbase and equal wheelbase layout for stable operation and flexibility. The reinforced 6-ton front axle and 5.5-ton rear axle deliver 10% higher load-bearing capacity and bending resistance.
High Efficiency & Fast Cycle Times - Double-pump confluence hydraulic system provides strong cylinder power, fast boom lifting, and quick loading speed. Breakout force reaches 175 kN, traction force reaches 165 kN, with total cycle time ≤ 10 seconds.
Optimized Bucket Design - Standard 3.0-3.2 m³ bucket features optimized shape for easy penetration and high fill rate. Optional buckets from 2.5 m³ to 5.0 m³ for different material densities (rock, sand, coal, grain).
Superior Operator Comfort - XC9 series pressurized cab with air conditioning, low noise, dust-proof, and heat-insulation design. Spacious interior with storage compartments, cup holder, charging base, and full-view rear glass for safe reversing.
Easy Maintenance - Flip-up large side door structure with wide opening angle for easy engine and radiator access. Centralized oil drainage and one-stop maintenance design reduces service time and costs.
Global Compliance - Available with Euro V emission engine, ZF automatic transmission, ZF wet drive axle, and electro-hydraulic load-sensing hydraulic system - reaching international advanced levels in reliability, energy saving, and efficiency.

Optional Attachments - Multi-Functionality

The XC958 supports a wide range of attachments via a quick-change coupler, allowing fast switching between different tools to meet diverse customer needs:

Buckets: Rock bucket (2.5 m³), 4-in-1 bucket, light material bucket (up to 5.0 m³ for coal/grain), high-dump bucket
Material Handling: Pallet forks, sliding forks, log grapple, pipe grapple, grass clamp
Specialized Attachments: Snowplow, sweeper, lifting appliance
Quick-Change System: Hydraulic quick coupler for attachment swaps in minutes

Applications

Mining - Ore and overburden handling, coal yards, steel plants
Construction - Sand, gravel, aggregate, earthmoving
Ports & Logistics - Bulk material loading, container handling
Quarries & Sand Yards - Truck loading, stockpile management
Road & Infrastructure - Base material loading, asphalt plant feeding
Agriculture - Grain, feed, fertilizer, silage handling
Waste Management - Recycling and waste material handling

FAQ - Frequently Asked Questions

Q1: What engine does the XC958 use?

A: The XC958 is powered by a Weichai diesel engine with electronic control high-pressure common-rail technology, rated at 162-170 kW (approx. 217-228 HP). Weichai is China's leading heavy-duty engine manufacturer, known for reliability, fuel efficiency, and worldwide parts availability.

Q2: What is the standard bucket capacity?

A: The standard bucket capacity is 3.0 - 3.2 m³. Optional buckets range from 2.5 m³ (rock bucket) to 5.0 m³ (light material bucket for coal or grain). The bucket can be selected based on material density and working conditions.

Q3: What is the price for a brand new XCMG XC958?

A: Factory direct price FOB China main port (Shanghai, Qingdao, Tianjin) ranges from approximately USD 34,000 - 45,000, depending on configuration (bucket type, tires, emission standard, optional features). Contact us for a firm quotation based on your specific requirements.

Q4: Is the XC958 available with Euro V emission standard?

A: Yes. The XC958 can be supplied with Euro V emission engine, ZF automatic transmission, ZF wet drive axle, and electro-hydraulic load-sensing hydraulic system. Tier 3 / China III is also available for markets with less strict regulations. Please specify your local emission requirements when ordering.

Q5: Can I get right-hand drive (RHD) or left-hand drive (LHD)?

A: The XC958 is manufactured as left-hand drive (LHD) as standard. RHD is available on request with extended lead time. Please confirm when ordering.

Q6: What attachments are available for the XC958?

A: A wide range of optional attachments includes: rock bucket, 4-in-1 bucket, light material bucket, pallet forks, sliding forks, log grapple, pipe grapple, grass clamp, snowplow, sweeper, lifting appliance, and hydraulic quick-coupler system.

Q7: What is the fuel consumption?

A: Under normal working conditions (loading sand/gravel, 40-50 cycles per hour), fuel consumption is approximately 12 - 16 L/hour. The ECU-controlled high-pressure common-rail system and three power modes (light/medium/heavy load) optimize combustion for maximum fuel efficiency.

Q8: Do you provide spare parts?

A: Yes. We stock genuine XCMG and Weichai parts - filters, engine components, hydraulic seals, tires, buckets, and more. For bulk orders (3+ units), we include a starter parts kit.

Q9: How is the loader shipped?

A: Shipped in a 40-foot flat rack or open-top container, partially disassembled (bucket removed). Main ports: Shanghai, Qingdao, Tianjin, Guangzhou. Transit time: 25-45 days to most African, Asian, Middle Eastern, and South American ports.

Q10: What documents do you provide for customs?

A: Commercial invoice, packing list, Bill of Lading, Certificate of Origin ("Made in China"), export declaration, engine/chassis number verification, and emission compliance statement (Tier 3 / Euro V) as required.

Q11: What warranty do you offer?

A: 12 months or 2,000 operating hours on engine, transmission, hydraulic system, and axles. Extended warranty options available.

Q12: Can I inspect the loader before buying?

A: Yes. We provide factory photos, pre-delivery inspection videos, and live video walkaround via WhatsApp / WeChat. You are also welcome to visit our facility in Jiangsu Province (XCMG headquarters).

Q13: What is the minimum order quantity?

A: 1 unit is accepted. Volume discounts available for 2, 3, 5+ units.

Q14: How long from order to shipment?

A: Stock unit: 7-10 days for loading. Custom configuration: 20-30 days. Sea freight: 25-45 days.

Q15: Is the XC958 suitable for heavy rock applications?

A: Yes. With the optional rock bucket (thicker wear plates, reinforced cutting edge, additional guarding) and 185 kN breakout force, the XC958 is well-suited for quarry and mine rock handling. For extreme rock applications, we recommend the reinforced frame and heavy-duty tyre options.

Q16: Can you paint the loader in my company colours?

A: Yes. For orders of 3+ units, we offer custom painting (RAL code or sample). Stock units are standard XCMG yellow.

Order Process (In Stock Units)

Select configuration - bucket type, tires, emission standard (Tier 3 / Euro V), attachments, steering (LHD/RHD)
Request stock unit photos & video - we send actual unit images and a walkaround video
Proforma invoice - issued with full specifications and price
Deposit - 30% by T/T
Final inspection - we send pre-shipment video for your approval
Balance payment - 70% before loading
Loading & shipment - within 7-10 days
Delivery - 25-45 days to your port
