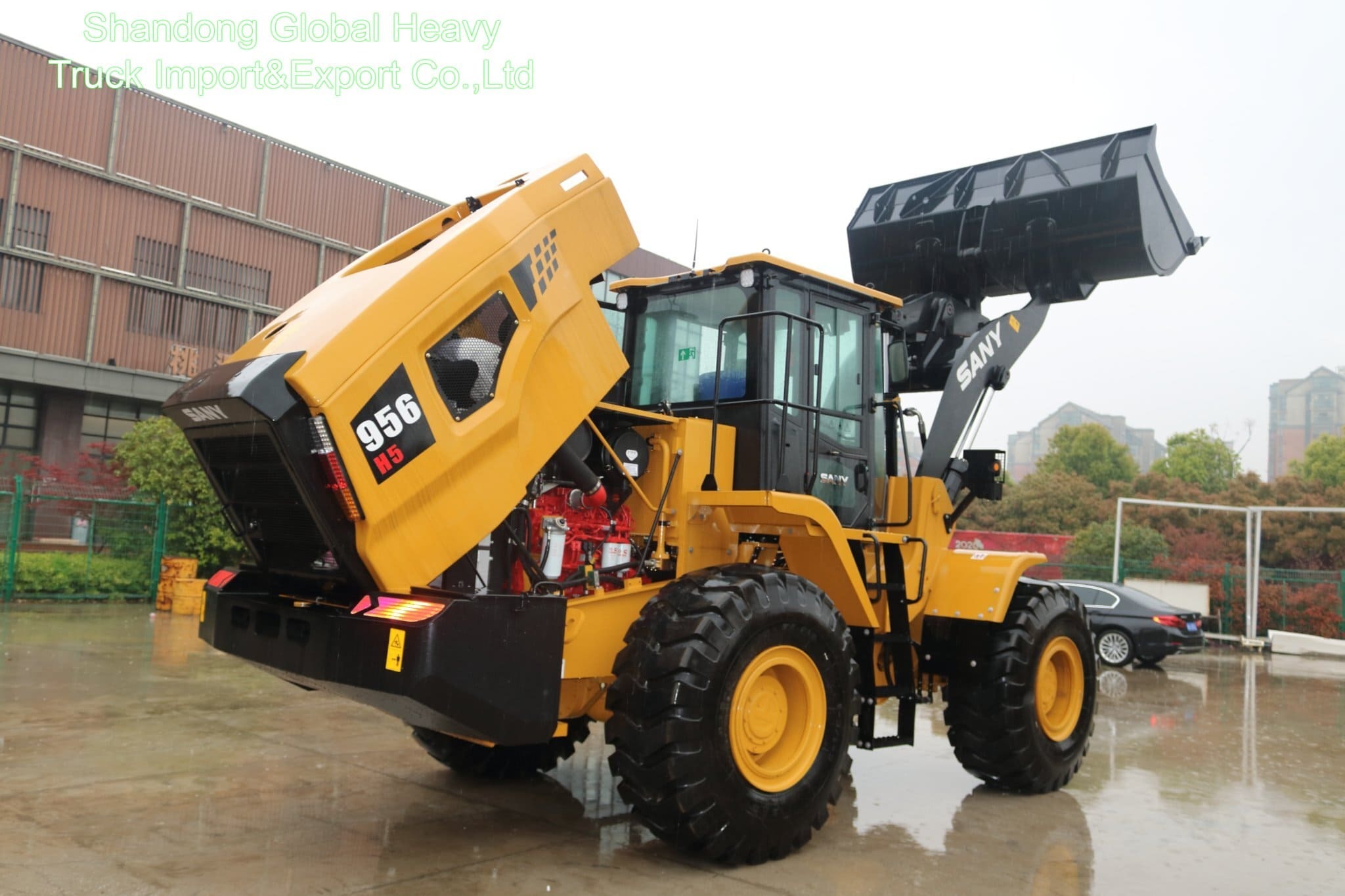

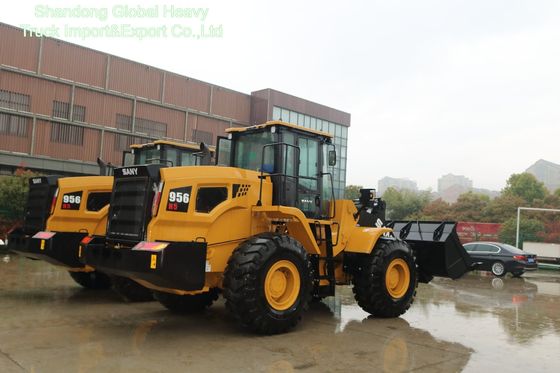

SANY SYL956H5 5 Ton Wheel Loader with 3m3 Bucket Capacity and 164 kW Diesel Engine

SANY SYL956H5 5 Ton Wheel Loader with 3m3 Bucket Capacity and 164 kW Diesel Engine

  • SANY SYL956H5 5 Ton Wheel Loader with 3m3 Bucket Capacity and 164 kW Diesel Engine
  • SANY SYL956H5 5 Ton Wheel Loader with 3m3 Bucket Capacity and 164 kW Diesel Engine
  • SANY SYL956H5 5 Ton Wheel Loader with 3m3 Bucket Capacity and 164 kW Diesel Engine
  • SANY SYL956H5 5 Ton Wheel Loader with 3m3 Bucket Capacity and 164 kW Diesel Engine
SANY SYL956H5 5 Ton Wheel Loader with 3m3 Bucket Capacity and 164 kW Diesel Engine
Product Details:
Place of Origin: China
Brand Name: SANY
Certification: ISO
Model Number: 956H5
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30-45 work days
Payment Terms: L/C,T/T
Supply Ability: 400 Unit/Units per month
Contact Now
Detailed Product Description
Model NO.: 956H5 Rated Load: 5T
Transmission: Hydraulic Load And Unload Mode: Front Discharge
Walking Mode: Wheeled Type: NORMAL Loader
Bucket Capacity: 3m3 Power: 164kw
SIZE: 8106*2750*3500mm Wheel Base: 3300mm

SANY SYL956H5 - 5 Ton Wheel Loader for Construction & Mining
Product Overview

The SANY SYL956H5 is a 5-ton wheel loader built for heavy-duty construction and mining applications. With a rated payload of 5,000 kg and a standard bucket capacity of 3.0 m³, this machine delivers robust performance, fast cycle times, and excellent fuel efficiency. Its 6-ton platform frame and heavy-duty oscillating axle provide the strength and stability needed for harsh working conditions.

Powered by a 164 kW diesel engine (Tier 3 / China III), the SYL956H5 combines high breakout force with low operating costs. SANY is one of the world's largest construction equipment manufacturers, known for innovation and reliability.

Made in China - New units in stock, ready for shipment.

Key Specifications
ParameterDetails
ModelSANY SYL956H5
ConditionBrand new
Rated Load5,000 kg (5 tons)
Bucket Capacity3.0 m³ standard (2.7-4.0 m³ optional)
Operating Weight17,100 - 17,200 kg
Engine Power164 kW (approx. 220 HP)
Breakout ForceHigh - heavy-duty design
Max Dumping Height3,118 mm
Dumping Distance1,140 mm
Max Travel Speed40 km/h
Turning Radius5,850 mm
Wheelbase3,200 mm
Fuel Tank300 L
Emission StandardTier 3 / China III
Warranty12 months / 2,000 hours
Key Features
  • 5-Ton Payload with 6-Ton Class Strength - The SYL956H5 uses a 6-ton platform frame and heavy-duty oscillating axle, delivering durability and performance that rivals larger loaders.
  • Advanced Hydraulic System - High-pressure load-sensitive variable hydraulics distribute flow on demand, reducing energy loss by up to 10% while providing higher breakout and lifting force.
  • Fast Cycle Times - Faster travel speeds, quicker boom lifting, and optimized cycle times boost daily productivity.
  • Superior Operator Comfort - Spacious, low-noise cab (78 dB) with ISRI suspension seat, Parker fingertip controls, FNR dual-position shifting, TFT LCD display, keyless auto-start, and FOPS/ROPS certification.
  • Easy Maintenance - Flip-up engine hood, centralized grease points, openable rear window for radiator cleaning, and full hydraulic braking system (no brake fluid to add).
  • Smart Management - AI-enabled system for one-click service requests, fault diagnosis, and fleet networking.
Optional Attachments
  • Rock bucket, light material bucket, 4-in-1 bucket
  • Pallet forks, log grapple, high-dump bucket
  • Quick coupler system, snowplow, sweeper
Applications
  • Mining - ore, overburden, coal
  • Construction - sand, gravel, aggregate, earthmoving
  • Quarries - rock and aggregate loading
  • Ports - bulk cargo handling
  • Road building - base material loading
  • Waste management - recycling materials
FAQ - Frequently Asked Questions
Q1: What engine does the SYL956H5 use?
A: It uses a high-efficiency 164 kW diesel engine. For customers preferring a specific brand, we also offer the SW956K1 variant with a Weichai engine upon request.
Q2: Is it really a 5-ton loader?
A: Yes, rated load is 5,000 kg. However, its 6-ton platform frame gives it strength comparable to larger machines.
Q3: What is the price?
A: FOB China main port: approximately USD 40,000 - 55,000 depending on configuration. Volume discounts available.
Q4: Can I get right-hand drive (RHD)?
A: Standard is left-hand drive. RHD is available on request with extended lead time.
Q5: What emission standards are available?
A: Standard is Tier 3 / China III. Tier 2 and higher (Euro V) available on request.
Q6: What is fuel consumption?
A: Approximately 12-16 L/hour under normal working conditions.
Q7: Do you provide spare parts?
A: Yes. We stock genuine SANY and Weichai parts. Bulk orders include a starter parts kit.
Q8: How is it shipped?
A: In a 40ft flat rack container, partially disassembled. Transit 25-45 days.
Q9: What documents for customs?
A: Invoice, packing list, BL, Certificate of Origin, export declaration, engine/chassis numbers, emission statement.
Q10: What warranty?
A: 12 months or 2,000 hours on engine, transmission, hydraulics, and axles.
Q11: Can I inspect before buying?
A: Yes. We provide photos, videos, and live walkaround. You can also visit our facility.
Q12: Minimum order quantity?
A: 1 unit. Volume discounts for 2, 3, 5+ units.
Q13: Lead time?
A: Stock unit 7-10 days; custom config 20-30 days; sea freight 25-45 days.
Q14: Suitable for rock?
A: Yes, with optional rock bucket. The machine's reinforced structure handles heavy rock well.
Q15: Can you paint my company colors?
A: Yes, for orders of 3+ units.
Order Process
  1. Select configuration - bucket, tires, attachments, steering, emission standard.
  2. Request photos/videos.
  3. Proforma invoice - 30% deposit.
  4. Final inspection via video - pay 70% balance.
  5. Shipment within 7-30 days.
  6. Delivery 25-45 days to your port.
