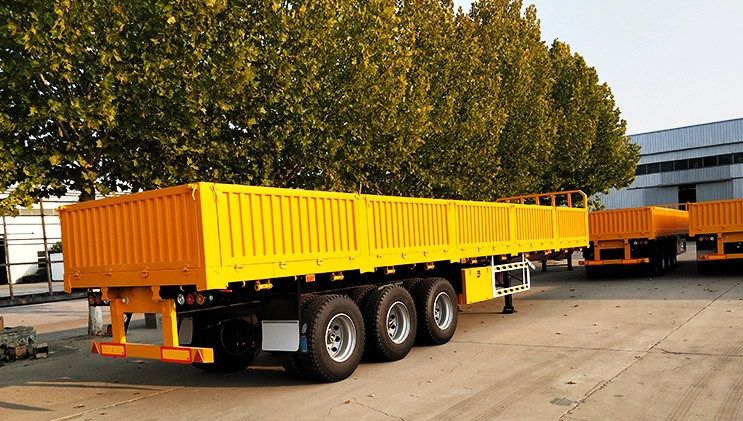

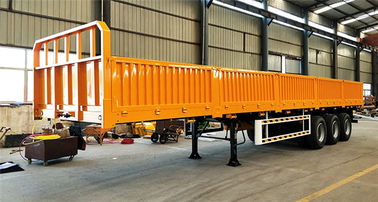

40ft Side Wall Heavy Duty Semi Trailers 3/4 Axles , Mini Enclosed Cargo Dump Truck

40ft Side Wall Heavy Duty Semi Trailers 3/4 Axles , Mini Enclosed Cargo Dump Truck

    • 40ft Side Wall Heavy Duty Semi Trailers 3/4 Axles , Mini Enclosed Cargo Dump Truck
    • 40ft Side Wall Heavy Duty Semi Trailers 3/4 Axles , Mini Enclosed Cargo Dump Truck
    • 40ft Side Wall Heavy Duty Semi Trailers 3/4 Axles , Mini Enclosed Cargo Dump Truck
  • 40ft Side Wall Heavy Duty Semi Trailers 3/4 Axles , Mini Enclosed Cargo Dump Truck

    Product Details:

    Place of Origin: Shandong, China
    Brand Name: Lu Jun
    Certification: ISO9001, CCC
    Model Number: 3/4 axles 40ft fence semi trailer

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negotiable
    Packaging Details: Nude
    Delivery Time: 30days
    Payment Terms: T/T, L/C
    Supply Ability: 400 Unit/Units per Month
    Contact Now
    Detailed Product Description
    Type: Semi-Trailer, Flatbed Semi Trailer Material: Steel
    Axles: 13T 16P, 1-4 Pcs Suspension: Mechanical / Air / Single Point Suspension
    Twist Locks: 4, 8, 12pieces Max Payload: 65T
    Tire: 12R22.5 Or 12R20

    3/4 Axles 40ft Side Wall Semi Trailer Flat Bed Mini Enclosed Cargo Dump Truck Trailer




    Quick Details

    Use:Truck Trailer

    Type:Semi-Trailer, Flatbed Semi Trailer

    Material:Steel

    Certification:ISO9001, CCC

    Size:12400*2500*2700

    Max Payload:65T

    Place of Origin:Shandong, China

    Usage:Truck Trailer

    Product name:3/4 axles 40ft fence semi trailer

    Axles:13T 16P, 1-4 pcs

    Axle Brand:BPW / FUWA / Yonglitai / Huajin etc.

    Suspension:Mechanical / air / single point suspension

    Color:optional

    Landing Gear:Standard 28Ton, JOST / FUWA etc.

    Tire:12R22.5 or 12R20

    Twist Locks:4, 8, 12pieces





    Supply Ability

    Supply Ability:

    400 Unit/Units per Month

    Packaging & Delivery

    Packaging Details

    Shipped by RO-RO / container / bulk cargo carrier.
    PS: 3 or 4 stack up when transported by bulk cargo carrier.
    PS: 2 or 3 units in one 40' container

    Port

    any port of China

    Lead Time :

    Quantity(Pieces) 1 - 10 >10
    Est. Time(days) 30 To be negotiated



    Product Features:
    1. Carry all kinds of cargo:
    (1) wood, sand, stone, cement, equipment etc;
    (2) 20ft or 40ft container (twist locks can setting 8 pcs or 12 pcs).
    (3) non-removable big size objects in factory / construction site.
    2. Size can be customized.
    3. Can load more cargo.
    4. Type: straightness or high-gooseneck or low-gooseneck type
    5. With lower center of gravity, more steady especially at high speed



    Product Description



    Overall Dimension(L*W*H) 12400*2500*2700 / 13000*2500*2900mm
    Tare Weight 7500KG
    Loading Weight 65000KG
    Axle 13T 3/4 pcs, BPW or FUWA or Yonglitai or Huajin Brand
    Leaf Spring 90*13-10 6/8 sets, Funiu or Taiyue etc.
    Suspension system Mechanical Suspension / air suspension / single point suspension (Germany Type or America Type or Japan Type)
    Main Beam The height of the beam is 500mm, upper plate 14mm, down plate is 16mm, middle plate is 6/8 mm, Material is Q345 Carbon Steel
    Side Beam 14#/16# channel steel (Q235)
    Cross member 8#/10# channel steel (Q235)
    Platform plate 3mm checker Plate or flatbed
    Side wall Height 600mm / 800mm
    Front board Height 1150mm/1350mm
    Container Twist Locks Twist lock optional upon choice (8 pcs or 12pcs)
    Tire Type and quantity 12R22.5-18 12units
    Steel Rim 9.00-22.5 12Units
    Tool Box 1 tyre spanner, 1 gudgeon sleeve and 1 cranking bar
    Traction Pin
    2"(50mm) or 3.5"(90mm)
    Spare Wheel Bracket
    1 piece
    Landing Gear
    Standard 28Ton, JOST or FUWA etc.
    Brake system WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; Two pieces of 40L air tanks, ABS available
    Electrical system 1. Voltage: 24V, LED lights
    2. Tail lamp with turn signal, brake light & reflector, side lamp etc.
    3.Receotacle: 7 ways (7 wire harness)
    Painting customize
    other Can add Mid & Rear Side protection, 24 pcs D-rings, need 11 or 13 doors at the side wall
