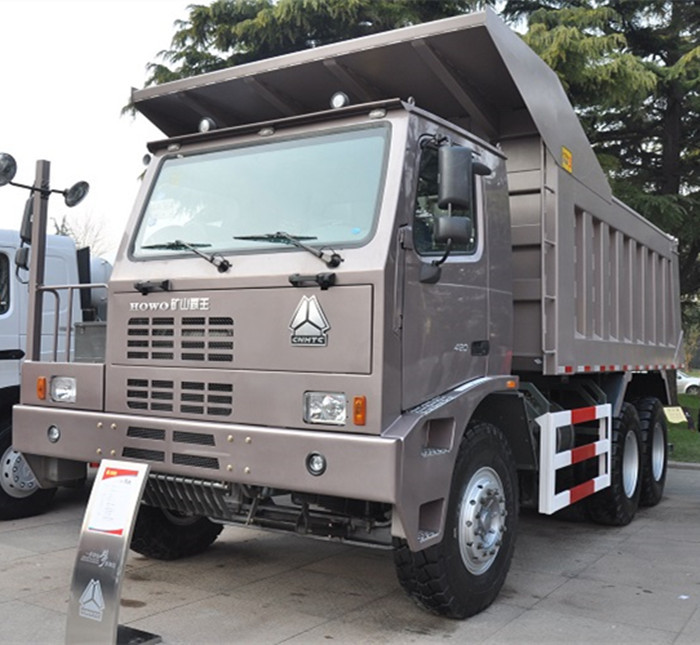

ZZ5707V3842CJ 420HP Heavy Mining Trucks 70 Tons With Left Hand Drive

ZZ5707V3842CJ 420HP Heavy Mining Trucks 70 Tons With Left Hand Drive

    • ZZ5707V3842CJ 420HP Heavy Mining Trucks 70 Tons With Left Hand Drive
    • ZZ5707V3842CJ 420HP Heavy Mining Trucks 70 Tons With Left Hand Drive
    • ZZ5707V3842CJ 420HP Heavy Mining Trucks 70 Tons With Left Hand Drive
  • ZZ5707V3842CJ 420HP Heavy Mining Trucks 70 Tons With Left Hand Drive

    Product Details:

    Place of Origin: JINAN CITY OF CHINA
    Brand Name: SINOTRUK
    Certification: ISO/CCC
    Model Number: ZZ5707V3842CJ

    Payment & Shipping Terms:

    Minimum Order Quantity: 1UNIT
    Price: Negotiable
    Packaging Details: Nude.
    Delivery Time: 30-45 Work days
    Payment Terms: L/C, T/T
    Supply Ability: 500 UNITS/MONTH
    Contact Now
    Detailed Product Description
    Drive Wheel:: 6x4 Dimensions (L X W X H) (mm):: 9045x3200x3770mm
    Cargo Body Size:: 5800*3100*1700mm Loading Capacity:: 70Tons
    Engine Power:: 420HP Steering Wheel:: Left Hand Drive

    ZZ5707V3842CJ SINOTRUK HOWO 420HP Mining Dump Truck 70tons With Optional Color



    Description:



    HOWO 70 Mining dump truck rated loading capacity is 70000kg , overall design adopts wide frame and single side cabin constructure , While effectively increasing the load capacity and self-unloading capacity of the mine truck, the center of gravity of the vehicle chassis is further reduced, which ensures that the overall center of gravity of the vehicle is more stable after loading large tonnage minerals. The special frame of the 70 mine car has better resistance to twisting and ensures that the center of gravity of the chassis is more stable.

    The design is in line with the mine roads of China's open pit mines and large mines, and the actual truck environment of most narrow and narrow, soft and muddy. Compared with the ordinary high gravity mine dump trucks, the HOWO series 70 mine trucks have higher passability and Security guarantees have broad market potential. Currently , the mine truck has been most popular trucks by users and its selling quatity is increasing constantly .



    Packing:



    Nude Pack.The packing of the commodity shall be in accordance with the export

    standard packing of the manufacturer, be suitable for long distance transportation of

    ocean and inland. The Seller shall be take measures against moisture,

    shocks and rust according to the special needs of the commodity.



    Competitive Advantage:



    1. High quality has always been our advantage.We have perfect transportation methods, which can greatly save your transportation cost.Our semi trailers can transport .

    2. Specialization ,standard and accurate meet your requirement.
    3. The best quality standard guaranteed

    4. Warranty: one year

    5.  Production time: within 35 working days

    6.  Shipping: we have logistic team, can cargo your truck fast and safety.



    Truck Type

    70TON Mining King Dump Truck

    Truck Model

    ZZ5707V3842CJ

    Truck Brand

    SINOTRUK—HOWO

    Driving Type

    Left Hand Driving

    Dimension(Lx W x H)(unloaded)(mm)

    9045x3200x3770

    Cargo body size (L*W*H, mm)

    5800*3100*1700 30.56m3

    Cargo body Thickness (mm)

    bottom:12mm, side:10mm,

    Cargo material

    Manganese plate

    Lifting System

    HYVA front side lifting

    Approaching angle/Departure angle(°)

    32/40

    Overhang(front/rear) (mm)

    1500/1800

    Wheel base (m

    3800+1500

    Max speed(km/h)(km/h)

    50

    Min. ground Clearance(mm)

    340

    Max. gardeability(%)

    42

    Min. turning Radius(e)

    22

    Curb weight(kg)

    23000

    Loading Weight(kg)

    70000

    Engine

    Brand

    SINOTRUK

    Model

    D12.42, water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter cooling, directly injection

    Fuel type

    Diesel

    Horse Power, max(kw/rpm)

    420HP

    Emission

    EURO III

    Fuel tanker capacity(L)

    500

    Clutch

    CH430-21(2100N.m) Rumsfeld diaphragm clutch.

    Front suspension

    1500mm; Half the elliptical leaf spring with shock absorber cavitation

    Rear suspension

    1000mm; The overall balance shaft balance suspension, unilateral inclined outfit 4 riding bolt

    Transmission

    Model

    HW21712

    Brand

    SINOTRUK

    Brake system



    Service brake

    Dual circuit compressed air brake

    Parking brake

    spring energy, compressed air operating on rear wheels

    Auxilary brake

    engine exhaust valve brake

    Steering system

    Model

    8118 hydraulic steering with power assistance

    Brand

    Germany brand

    Front axle

    HF12 , Steering with double T-cross section beam

    Rear axle

    AC26, (cast steel 2×26ton hub-reduction axle)

    Color

    Optional

    Tire

    14.00-25 36 level 10PCS with one spare tire

    Electrical system

    Battery

    2X12V/165Ah

    Alternator

    28V-1500kw

    Starter

    7.5Kw/24V

    Cab

    HW7D cab, (with air-condition), Unilateral cab
