Weichai 90 Ton 10 Wheel Mining Dump Truck 420 Hp Euro 2 Wheelbase 3800

Weichai 90 Ton 10 Wheel Mining Dump Truck 420 Hp Euro 2 Wheelbase 3800

    • Weichai 90 Ton 10 Wheel Mining Dump Truck 420 Hp Euro 2 Wheelbase 3800
    • Weichai 90 Ton 10 Wheel Mining Dump Truck 420 Hp Euro 2 Wheelbase 3800
    • Weichai 90 Ton 10 Wheel Mining Dump Truck 420 Hp Euro 2 Wheelbase 3800
    • Weichai 90 Ton 10 Wheel Mining Dump Truck 420 Hp Euro 2 Wheelbase 3800
  • Weichai 90 Ton 10 Wheel Mining Dump Truck 420 Hp Euro 2 Wheelbase 3800

    Product Details:

    Place of Origin: China
    Brand Name: WEICHAI
    Certification: ISO/CCC
    Model Number: WEICHAI 90

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiation
    Packaging Details: Nude
    Delivery Time: 30-40 work days
    Payment Terms: L/C, T/T
    Supply Ability: 300 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Drive Wheel: 6x4 Capacity (Load): 90ton
    Condition: New Engine: WD12.420
    Dimensions: 9050×3400×4050 Wheelbase: 3800+1550
    Horsepower: 420hp Cargo Size: 5800*3200*1850
    High Light:

    diesel dump truck

    ,

    sinotruk howo dump truck

    White WEICHAI 90 Ton 6x4 Mining Dump Truck With 420 hp Euro 2 9050×3400×4050mm

    Product description



    Using leading technology to continuously improve product quality and efficiency, making it difficult in complex environments to maintain efficient carrying capacity. Become the industry's top manufacturers, starting from the actual needs of customers, continuing to provide transportation solutions for customers. Specializes in shipping, ushering in the future, to create more value for customers.

    Shengda mine car features wide-body

    1.vehicle styling - novel rough mad, seamless, extraordinary momentum

    Personalized excellent vehicle design, highlighting the strong domineering personality, engineering machinery and automotive exterior design the perfect combination of accomplishments king of the wind, classic.

    2. powertrain - optimal matching, powerful

    Powertrain The only domestic "axis powertrain test bed" optimal matching, reliable performance, good fuel economy, the annual savings of $ 50,000.

    Match Weichai power engine, Fast gearbox, Hande Axle, high torque, high speed ratio, climbing ability, heavy smooth start, working conditions in the non-road transport alone was their superior performance.

    3. the frame - high strength, is not broken, remanufacturing

    Computer-aided finite element analysis, the overall welding rectangular frame, the vehicle center of gravity low, high strength and good rigidity; Frame Material selection of high-strength steel, bearing and impact ability.

    4. balanced suspension - three-frame structure, more reliable

    Enhanced, maintenance-free, patented product, balance shaft bearing type shaft structure, reasonable force balance shaft failure to solve the problem; unique combination of V-type thrust rod structure, lateral forces fail to solve the problem.

    5. the cab - user-friendly design, more comfortable

    Large space design, more spacious; acoustic insulation foam handle, hollow glass, low noise; air seats, more comfortable; manual / electric dual hydraulic tilting mechanism, flips forward 54 °, close to good repair; newly designed cab to achieve the space and the perfect combination of comfort, convenience for the driver a safe working environment and extraordinary driving experience.

    Product parameter



    90 tons wide body dump truck product configuration table
    Chassis model YZT3884(right)
    Engine model WD12.420
    power 316kw/2200rpm
    Gear box model 10JSD180K
    Axle front axle 20000kg
    middle axle 35000kg
    rear axle 35000kg
    Vehicle parameters total weight 9000kg
    curb weight 30000kg
    load capacity 60000k
    dimensions(mm) 9050×3400×4050
    drive wheel 6×4
    wheelbase(mm) 3800+1550
    minimum turning radius 10m
    cargo capacity 34m³
    cargo dismentions

    (5800*3200*1850,D18B12H14)

    bottom:T700,side:Q345B

    Performance parameter maximum speed ≥45km/h
    maximum grade ≥35%
    streering system assist form hydraulic power steering, hydraulic cylinder boost
    system pressure(MPa) 17
    flow(L/min) 40
    Braking system service brake double circuit drum
    parking brake spring brake, emergency brake
    auxiliary brake exhaust brake/select retarder brake
    syetem pressure(bar) 10
    slope(°) 30(uphill)/20(downhill)
    Suspension front suspension vertical leaf spring
    leaf spring thickness/width/number of sheets 20/100/13
    rear suspension leaf spring balance suspension support
    leaf spring thickness/width/number of sheets 29/100/15
    Lifting mechanism type front lift
    bore diameter(mm) 196
    Frame type high-strength steel flexible feame(12+12)
    Cab type single left,half floating,forward 46°
    Intake type multi-level dust filter
    exhaust type three-way exhaust
    oil capacity(L) 600(aluminum fuel tank)
    cargo type rectangular box/exhaust preheating
    Wheel  wheel model 14.00-24 28PR
    rim model 10.0-25
    Electrical system powered by single wire system,24V,negative ground

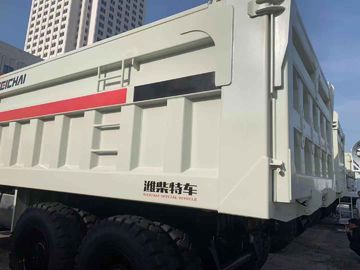

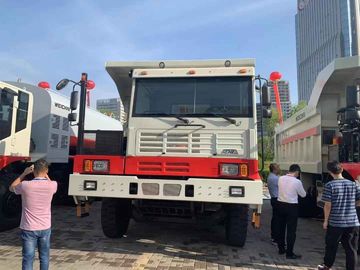

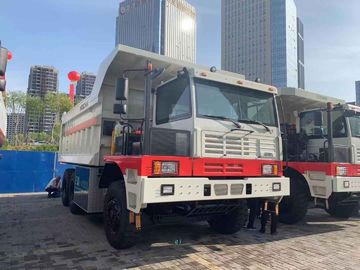

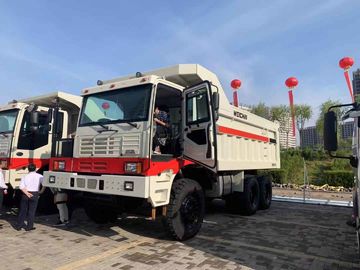

    Product picture



    Weichai 90 Ton 10 Wheel Mining Dump Truck 420 Hp Euro 2 Wheelbase 3800 0Weichai 90 Ton 10 Wheel Mining Dump Truck 420 Hp Euro 2 Wheelbase 3800 1Weichai 90 Ton 10 Wheel Mining Dump Truck 420 Hp Euro 2 Wheelbase 3800 2Weichai 90 Ton 10 Wheel Mining Dump Truck 420 Hp Euro 2 Wheelbase 3800 3Weichai 90 Ton 10 Wheel Mining Dump Truck 420 Hp Euro 2 Wheelbase 3800 4
