| Place of Origin: | China |
| Brand Name: | HOWO |
| Certification: | ISO/CCC |
| Model Number: | ZZ1257N4641W |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 35-40 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Unit/Units per Month |
| Transmission Type: | Manual | Storage: | Water |
|---|---|---|---|
| Fuel Type: | Diesel | Gross Vehicle Weight: | 41000 |
| Tanker Capacity: | 20000L | Cylindrical Sprinklers: | 2 |
| Engine Capacity: | 9726CC | Horsepower: | 336HP |
| High Light: | fuel tanker trucks,oil tanker truck |
||
SINOTRUK HOWO 6X4 336HP 20CBM Water Tanker Truck With Sprinklers ZZ1257N4641W
Product Description
HOWO truck which adopts the international key advanced technology of heavy duty truck, is a product for the Chinese market and international markets, it is researched and developed by sinotruk in line with international technical standards, sinotruk own its independent brand and independent intellectual property right, it is a new generation high end, advanced and matured heavy duty truck.
Product Parameter
| Model | ZZ1257N4641W | |
| Cabin | HW76 Long Cabin, with two seats and one bed, with Air Conditioner and electric window. | |
|
Engine |
Model | WD615.69 |
| Horse Power (Hp/rpm) | 336/2200, Euro II Emission Standard | |
| Max.Toruqe(Nm/rpm) | 135/1100-1600 | |
| Displacement L |
9.726
|
|
| Type | 6-cylinder in-line with water cooling, turbo charger and intercooling, 4-stroke direct injection diesel engine | |
| Transmission | HW19710, 10 speeds forward and 2 speeds reverse. | |
| Front Axle | HF9, Steering with double T-cross section beam, Loading Capacity: 9,000kgs | |
| Driving Axle | HC16, Pressed axle housing, central reduction with hub reduction, with differential locks between wheels and axles. ratio: 4.8. Option: 4.42 | |
| Suspension | Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer | |
| Steering System | ZF8118, Hydraulic steering with power assistance | |
| Brake System | Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake | |
| Tire | 12.00R20 | |
| Fuel Tank Capacity (L) | 400L Diesel Tank | |
| Kurb Weight (kg) | 13,400 | |
| Loading Capacity (kg) | 27,600 | |
| Gross Vehicle Weight (kg) | 41,000 | |
| Overall Dimension(L*W*H)(mm) | 9600×2500×3200 | |
| Tank Capacity(L) | 20,000 | |
| Tank Material | Carbon Steel | |
| Nos of Compartment | 1 | |
| Accessories |
2 nos of duck-billed sprinklers(in front), 2 nos of cylindrical sprinklers(at rear), 2 nos of 2.5" pressure water discharge, 1 nos of 3" water sucking mouth, 1 nos of high shooting spray rod, 2 nos of 3" 3m pipe, |
|
| Wheelbase(mm) | 4600+1350 | |
| Max. Speed (km/h) | 90 | |
Company Advantage
1. Excellent and Outstanding After Sales Service
Our professional technicians and mechanics and parts staff always concentrate all our products and our customers. Top Starting Point, High Quality and Worry-free Service is our promise to all our customers.
2. High Efficiency is One of Our Goal and Promise to Our Customers
We will be always with our customers whenever and wherever we are. All problems and questions shall be solved by our end at the first time. Customer priority outstands without any doubt.
3. Latest Truck Development and Trends Shall Be Delivered Regularly
We have abundant technical team, familiar with local and major exporter product standards. Our customers will be regularly updated with the latest truck development and trends in China and other countries.

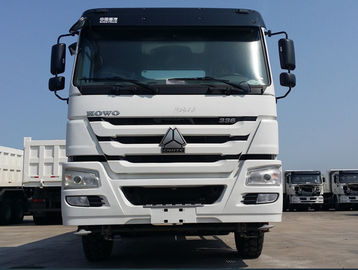

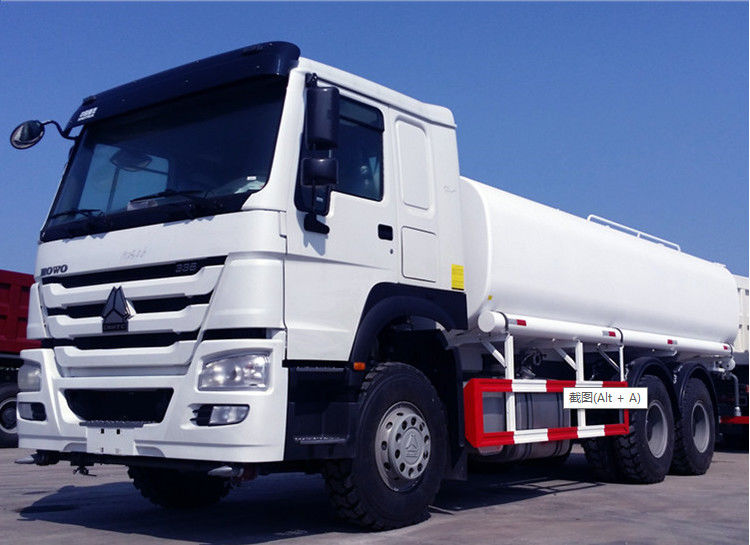

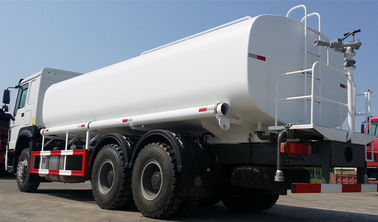

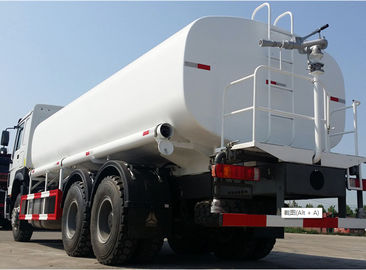

Product Picture
