| Place of Origin: | SHANDONG CHINA |
| Brand Name: | SINOTRUK |
| Certification: | ISO/CCC |
| Model Number: | HYUAN |
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 20 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 units/month |
| Overall Dimension: | 11500x2500x3550mm | Volume: | 28-48m3 |
|---|---|---|---|
| Tool Box: | 1 Sets(waterproof Type) | Wheelbase(mm): | 6700+1310+1310 |
| Suspension: | Mechanical Suspension Or Air Suspension | Thickness Of Plate: | Bottom: 6mm, Side: 4mm/6mm |
| High Light: | diesel semi trucks,cargo semi trailer |
||

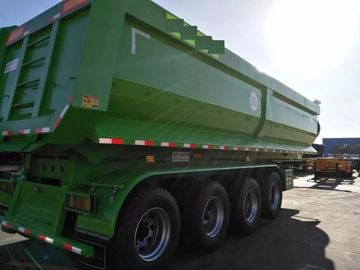

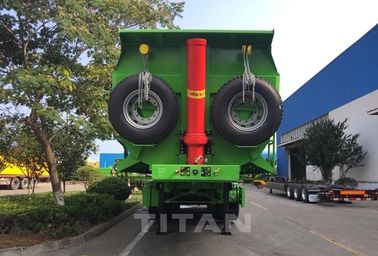

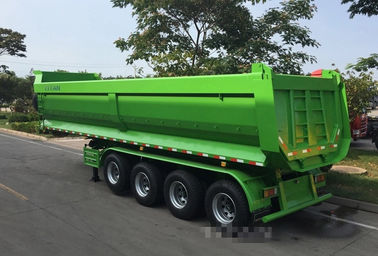

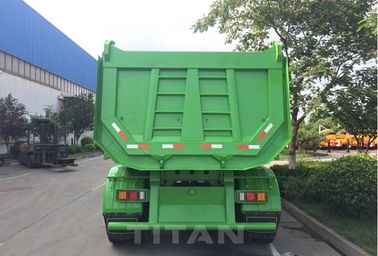

SINOTRUK 28-48m3 4 axle Hydraulic dump truck semi trailer with Optional color
Product description:
For Each trailer, we must do the testing and inspect the quality,and we have more than 30 QC&QA people on the production process and the testing process and warehouse to gurantee the quality of the every details. High quality has always been our advantage.You wil get the inspection certificate according to customer demand for every trailer which given by an independent third party certification company. You will get the out-standing quality assurance.The produces U Shape Dump Semi Trailer is ideal equipment to transport of for carrying sand crush stone rock and salt material,We can supply 2 axles, 3 axles, 4 axles tipper semi trailer, which loading capacity from 40 ton ton 80 ton for customer specific requirements.
Packing:
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
Competition advantages:
1. Excellent and high-quality control
2. Long lasting working life time.
3. Suspension is usually American style,or german style
4. Support legs also can be selected
5. Brand can be FUWA, BPW, also other brands for selection.
6. We have been engaged in this industry for more than 20 years. High quality has always been our advantage.
| Overall Size | 11500x2500x3550mm |
| Box Volume | 28-48m3 |
| Tare Weight | 7.85T-11T |
| Loading Weight | 40-80T |
| Kingpin | 50# or 90# |
| Brake system | Dual line braking system |
| Thickness of plate | Bottom: 6mm, Side: 4mm/6mm |
| Wheelbase(mm) | 6700+1310+1310 or other |
| Axle | 13T/16T capacity, FUWA / BPW Brand |
| Suspension | Mechanical suspension or air suspension |
| Tire | 11.00R20, 12.00R20, 11R22.5, 12R22.5, 315/80R22.5 Tire optional |
| Wheel rim | 8.5-20, 9.0-20, 8.25-22.5, 9.0-22.5 steel wheel rim optional upon choice |
| Landing gear | JOST brand two-speed, manual operating, heavy duty landing gear |
| Steel Spring | 8/8/8, 10/10/10, 12/12/12 pieces per axle |
| Frame | Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345 Carbon Steel. 16mm-25mm channel steel (Material is Q235 carbon steel) |
| Platform plate | Steel Sheet 3mm thickness |
| Landing Leg | JOST, FUWA or YAHUA brand 28T |
| Painting | Complete chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coat of final paint |
| Tool Box | 1 sets(waterproof type) |
| Packing | Polish with wax before shipping |
