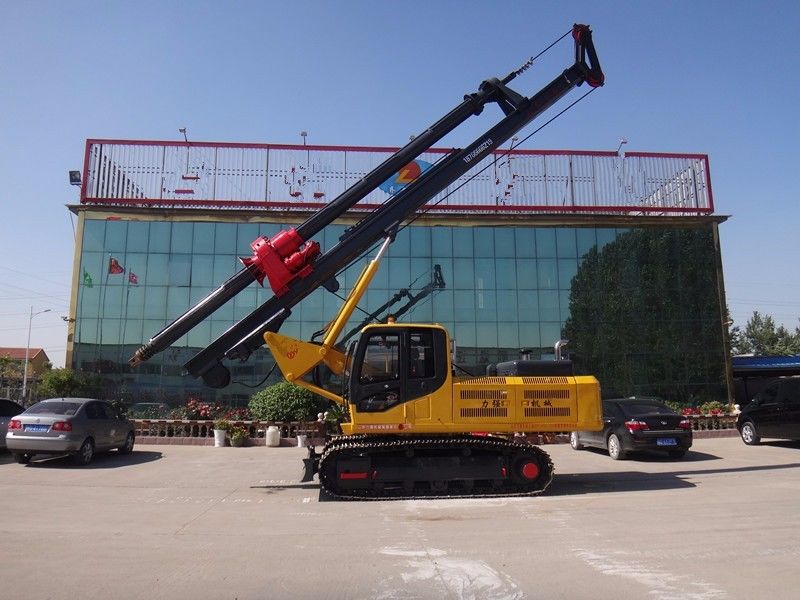

15 Tons 40m Drilling Rig Pile Driver Machine With 1800mm Hole Diameter WD200

15 Tons 40m Drilling Rig Pile Driver Machine With 1800mm Hole Diameter WD200

  • 15 Tons 40m Drilling Rig Pile Driver Machine With 1800mm Hole Diameter WD200
  • 15 Tons 40m Drilling Rig Pile Driver Machine With 1800mm Hole Diameter WD200
  • 15 Tons 40m Drilling Rig Pile Driver Machine With 1800mm Hole Diameter WD200
  • 15 Tons 40m Drilling Rig Pile Driver Machine With 1800mm Hole Diameter WD200
15 Tons 40m Drilling Rig Pile Driver Machine With 1800mm Hole Diameter WD200
Product Details:
Place of Origin: CHINA
Brand Name: YT
Certification: ISO/CCC
Model Number: YT150
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: Negotiable
Packaging Details: Nude
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T
Supply Ability: 500 units/month
Contact Now
Detailed Product Description
Model: WD200 Torque(KN.M): 90-150
Hole Diameter(mm): 400-1800 Hole Depth(m): 1-40
Winch Lifting(T): 15 Machine Size(m): 13x2.5x3.5
High Light:

pile driving equipment

,

borehole drilling machine

WD200 15 tons 40m drilling rig pile driver machine with 1800mm Hole diameter



Description:



According to specific working condistions, the users can select a corresponding gears of the imported Cummins turbo-supercharged engine with three gears, getting the drilling rig working as three engines.Unit head can switch between Normal Mode and Rock Cracking Mode which are applicable for soil and rock excavation respectively, improving the effciency.Winch pressurization and sleeve drive are both available for selection to meet users' various demands.It is equipped with a centralized lubrication system as standard configuration; maintenance is easier.The complete machine have passed CE certification of TUV Rheinland group.Optimally designed luffing mechanism and round drilling boom with the advantages of neoteric structure and easy maintenance greatly improves the drilling hole’s coverage area. That also makes low-order horizontal hole drilling available.The machine are expected to be functioning 10years with ability of spare parts.



Packing:



Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.



Competitive Advantage:



1. hydraulic retractable crawler type and trailer type optional.
2. Big hole, 1800mm&40m depth .

3. Drilling in soil, and rock .
4. It adopts the front-located single-rope main winch structure to greatly prolong the service life of steel wire rope and lower the use cost.

5. Professional Sales Team of trucks. Our target is not selling trucks; we help customers choose the best suitable trucks as per customer’s situation.
6. Professional team for spare parts and aftersales services.



Model
WD150
WD180
WD200
Torque(KN.M)
50-70
60-90
90-150
Hole diameter(mm)
400-1500
400-1800
400-1800
Hole depth(m)
1-15
1-25
1-40
Drill speed(rmp)
6-40
Feeding cylinder pressure(KN)
80-120
90-130
100-150
Feeding cylinder Lifitng(KN)
100-150
120-160
140-200
Winch lifting(T)
10
12
15
Working pressure(MPa)
16-32
Walking speed(KM/Hour)
5
Machine weight(T)
18
20
24
Machine size(m)
8.5x2.3x3.3
12x2.5x3.5
13x2.5x3.5
Diesel power(KW)
88-130

15 Tons 40m Drilling Rig Pile Driver Machine With 1800mm Hole Diameter WD200 015 Tons 40m Drilling Rig Pile Driver Machine With 1800mm Hole Diameter WD200 1
