| Place of Origin: | CHINA |
| Brand Name: | SINO Drilling |
| Certification: | CCC/CE/GOST |
| Model Number: | ZJ10 / 900CZ |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Package in Nude |
| Delivery Time: | 50-65 work days after deposit |
| Payment Terms: | LC, TT |
| Supply Ability: | 100 pieces/ month |
| Drilling Depth(41/2″Drill Pipe) M: | 1000 | Overhaul Depth(31/2″Drill Pipe) M: | 2500 |
|---|---|---|---|
| Max. Hook Load KN: | 900 | Engine Power (kW): | 261 |
| Hydraulic Transmission Box: | 4700 OFSR | Min. Turning Diameter (m): | 28 |
| Overall Dimension (m): | 16.7 × 3.05 × 4.2 | ||
| High Light: | pile driving equipment,rotary pile drilling rig |
||

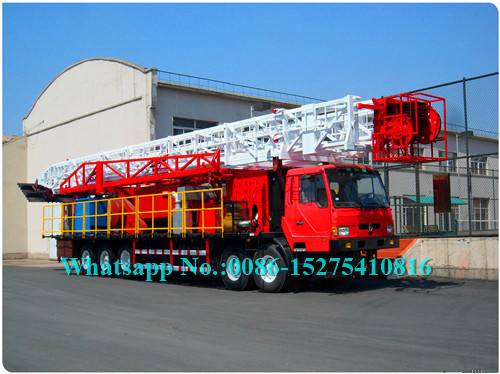

ZJ 10/900CZ truck mounted drill rig is a type of light truck mounted drilling rig self-developed by our company. Through years of technology innovation and continuous improvement, it has become more mature and reliable. It is used for drilling operation of shallow wells which is less than 1000m, overhaul operations of oil and gas wells and water well drilling operations.
1. Hydraulic well drilling rig is the minimum level model for shallow well drilling, suitable for drilling and work-over operation, also can be used for water well drilling operation.
2. CAT/ Cummins series diesel engine can be used.
3. Truck mounted drill rig is equipped with ALLISON hydraulic transmission box. Domestic hydraulic transmission box is also optional.
4. 10×8 petroleum-purposed vehicle chassis for double drum truck mounted drilling rig. 8×8 chassis for single drum truck mounted drilling rig.
5. The main brake for the draw-works can be band brake or disc brake, the auxiliary brake can be Eaton pneumatic water cooled disc brake or water brake.
6. Adopting a number of patented technologies, the product now is with the features of reasonable layout, reliable operation performance and low transportation cost, easy for on-site installation and maintenance.
| Item | Name | Parameter |
| 1 | Drilling depth(41/2″Drill Pipe) m | 1000 |
| 2 | Overhaul depth(31/2″Drill Pipe) m | 2500 |
| 3 | Max. hook load KN | 900 |
| 4 | Hook speed (m/s) | 0.2 to 1.4 |
| 5 | Mast (m) | 29/31 |
| 6 | Mast type | A-mast |
| 7 | Engine power (kW) | 261 |
| 8 | Hydraulic transmission box | 4700 OFSR |
| 9 | Transmission type of hydraulic well drilling rig | Hydraulic + Mechanical |
| 10 | Traveling system | 4 × 3 |
| 11 | Main rope diameter (mm) | φ26 |
| 12 | Hook Block model | YG90 |
| 13 | Swivel model of truck mounted drill rig | SL110 |
| 14 | Rotary table model | ZP175 |
| 15 | Chassis model | XDP40/8 × 6 |
| 16 | Approach / departure angle | 22°/18° |
| 17 | Min. ground clearance(mm) | 311 |
| 18 | Max. gradeability | 26% |
| 19 | Min. turning diameter (m) | 28 |
| 20 | Overall dimension (m) | 16.7 × 3.05 × 4.2 |
| 21 | Main unit mass (kg) | 50000 |
Products Photos:
Our Services
Presale Serivce:
Professional sales team supply personalized service according to customer's requirement.
Order operation:
We will start production of your order within 3 days with strict quality control.
Shipping:
According to different shipping requirements,our company logistics department will ship the Beiben tractor truck to you with our professional service. The necessary custom clearance documents such as contract, commercial invoice, packing list, certificate of origin will be sent to you.
After-sales Service:
Regularly callback to know the Beiben tractor truck working status and offer reasonable tech proposals.
Timely spare parts supply to guarantee the truck working continuously.
Our oversea engineers are ready all the time to serve.
