2000m Depth Pile Drilling Machine / Petroleum Drilling Equipment ZJ20/1580CZ

2000m Depth Pile Drilling Machine / Petroleum Drilling Equipment ZJ20/1580CZ

  • 2000m Depth Pile Drilling Machine / Petroleum Drilling Equipment ZJ20/1580CZ
  • 2000m Depth Pile Drilling Machine / Petroleum Drilling Equipment ZJ20/1580CZ
  • 2000m Depth Pile Drilling Machine / Petroleum Drilling Equipment ZJ20/1580CZ
  • 2000m Depth Pile Drilling Machine / Petroleum Drilling Equipment ZJ20/1580CZ
2000m Depth Pile Drilling Machine / Petroleum Drilling Equipment ZJ20/1580CZ
Product Details:
Place of Origin: CHINA
Brand Name: SINO Drilling
Certification: CCC/CE/GOST
Model Number: ZJ20 / 1580CZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Package in Nude
Delivery Time: 50-65 work days after deposit
Payment Terms: LC, TT
Supply Ability: 100 pieces/ month
Contact Now
Detailed Product Description
Drilling Depth(41/2″Drill Pipe) M: 2000 Overhaul Depth(31/2″Drill Pipe) M: 5500
Max. Hook Load KN: 1580 Engine Power (kW): 470
Hydraulic Transmission Box: ALLISON M6620AR Min. Turning Diameter (m): 38
Overall Dimension (m): 20.5 × 3.05 × 4.4 Main Unit Mass (kg): 65000
Color: Red/White
High Light:

pile driving equipment

,

borehole drilling machine

ZJ20 / 1580CZ 2000m Drilling Depth Truck-Mounted petroleum oil well Drilling Rig

Description


ZJ20/1580CZ truck mounted hydraulic rig is suitable for drilling operation of shallow wells which is less than 2000m, heavy repair operations of oil and gas wells and water well drilling operations. This light truck mounted mechanical drill rig self-developed by our company. Through years of technology innovation and continuous improvement, it has become more mature and reliable.

Features


1. This is the minimum level model for shallow well drilling, suitable for drilling and work-over operation, also can be used for water well drilling operation.
2. CAT/ Cummins series diesel engine can be used.
3. Truck mounted hydraulic rig is equipped with ALLISON hydraulic transmission box. Domestic hydraulic transmission box is also optional.
4. Equipped with 12×8 petroleum-purposed vehicle chassis, which has good cross-country ability.
5. The main brake for the draw-works can be band brake or disc brake, the auxiliary brake can be Eaton pneumatic water cooled disc brake or water brake.
6. Adopting a number of patented technologies, the mechanical drill rig now features reasonable layout, reliable operation performance and low transportation cost, easy for on-site installation and maintenance.

Technical Parameters of Truck Mounted Hydraulic Rig



Item Name Parameter
1 Drilling depth (41/2″Drill Pipe) m 2000
2 Overhaul depth (31/2″Drill Pipe) m 5500
3 Max. hook load KN 1580
4 Hook speed (m/s) 0.2 to 1.4
5 Mast (m) 35
6 Mast type A-mast
7 Engine power (kW) 470
8 Hydraulic transmission box M6620AR
9 Transmission type of mechanical drill rig Hydraulic + Mechanical
10 Traveling system 5 × 4
11 Main rope diameter (mm) φ29
12 Hook block model YG160
13 Swivel model SL160
14 Rotary table model ZP175
15 Chassis model of truck mounted hydraulic rig XDP60/12 × 8
16 Approach / departure angle 26°/18°
17 Min. ground clearance (mm) 311
18 Max. gradeability 26%
19 Min. turning diameter 38
20 Overall dimension (m) 20.5 × 3.05 × 4.4
21 Main unit mass (kg) 65000

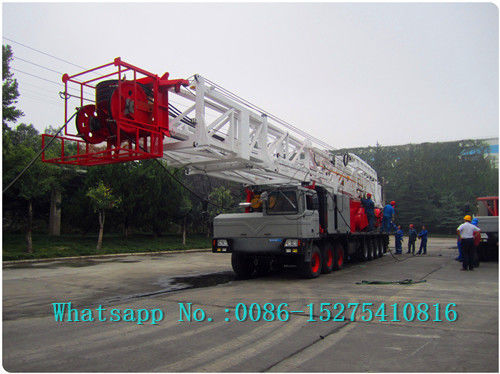

Products Photos:

2000m Depth Pile Drilling Machine / Petroleum Drilling Equipment ZJ20/1580CZ 02000m Depth Pile Drilling Machine / Petroleum Drilling Equipment ZJ20/1580CZ 12000m Depth Pile Drilling Machine / Petroleum Drilling Equipment ZJ20/1580CZ 22000m Depth Pile Drilling Machine / Petroleum Drilling Equipment ZJ20/1580CZ 32000m Depth Pile Drilling Machine / Petroleum Drilling Equipment ZJ20/1580CZ 42000m Depth Pile Drilling Machine / Petroleum Drilling Equipment ZJ20/1580CZ 5

Our Services



Presale Serivce:

Professional sales team supply personalized service according to customer's requirement.

Order operation:

We will start production of your order within 3 days with strict quality control.

Shipping:

According to different shipping requirements,our company logistics department will ship the Beiben tractor truck to you with our professional service. The necessary custom clearance documents such as contract, commercial invoice, packing list, certificate of origin will be sent to you.

After-sales Service:

Regularly callback to know the Beiben tractor truck working status and offer reasonable tech proposals.

Timely spare parts supply to guarantee the truck working continuously.

Our oversea engineers are ready all the time to serve.
