Place of Origin: | CHINA |
Brand Name: | SINO Drilling |
Certification: | CCC/CE/GOST |
Model Number: | ZJ40 / 2250CZ |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | Negotiable |
Packaging Details: | Package in Nude |
Delivery Time: | 50-65 work days after deposit |
Payment Terms: | LC, TT |
Supply Ability: | 100 pieces/ month |
Drilling Depth(41/2″Drill Pipe) M: | 4000 | Overhaul Depth(31/2″Drill Pipe) M: | 7000 |
---|---|---|---|
Max. Hook Load KN: | 2250 | Engine Power (kW): | 2 × 470 |
Hydraulic Transmission Box: | ALLISON 2×M5620AR | Min. Turning Diameter (m): | 41 |
Overall Dimension (m): | 22.3 × 3.2 × 4.5 | Main Unit Mass (kg): | 85000 |
Color: | Red/White | ||
High Light: | pile driving equipment,rotary pile drilling rig |
ZJ40 / 2250CZ 4000m Drilling Depth Truck-Mounted petroleum oil well Hydraulic Drilling Rig Adopt Germany Technology
Description
ZJ40/2250CZ truck mounted drill equipment is the largest type of truck mounted drilling rig in the world till now, which is self-developed by our company. It is suitable for drilling operation of middle and shallow wells which is within 4000m, heavy repair operations of oil and gas wells and water well drilling operations.
Features
1. Well drilling rig is suitable for drilling and work-over operations of middle and shallow wells.
2. CAT/ Cummins series diesel engine can be used.
3. Equipped with ALLISON hydraulic transmission box.
4. Equipped with 14×10 petroleum-purposed vehicle chassis, it has good cross-country ability.
5. The main brake for the draw-works can be band brake or disc brake, the auxiliary brake can be Eaton pneumatic water cooled disc brake or water brake.
Technical Parameters of Truck Mounted Drill Equipment
Item | Name | Parameter |
1 | Drilling depth (41/2″Drill Pipe) m | 4000 |
2 | Overhaul depth (31/2″Drill Pipe) m | 7000 |
3 | Max. hook load KN | 2250 |
4 | Hook speed (m/s) | 0.2 to 1.4 |
5 | Mast (m) | 38/39 |
6 | Mast type | A-mast |
7 | Engine power (kW) | 2 × 470 |
8 | Hydraulic transmission box | 2 × M5620AR |
9 | Transmission type of well drilling rig | Hydraulic + Mechanical |
10 | Traveling system | 6×5 |
11 | Main rope diameter mm | φ32 |
12 | Hook block model | YG225 |
13 | Swivel model | SL225 |
14 | Rotary table model of truck mounted drill equipment | ZP275 |
15 | Chassis model | XDP80/14 × 10 |
16 | Approach / departure angle | 26°/18° |
17 | Min. ground clearance (mm) | 311 |
18 | Max. gradeability | 26% |
19 | Min. turning diameter | 41 |
20 | Overall dimension (m) | 22.3 × 3.2 × 4.5 |
21 | Main unit mass (kg) | 85000 |

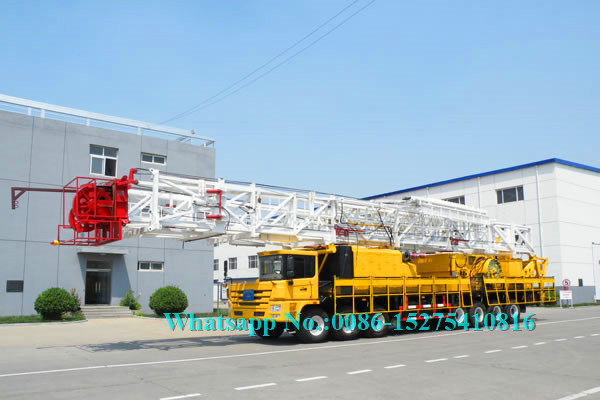

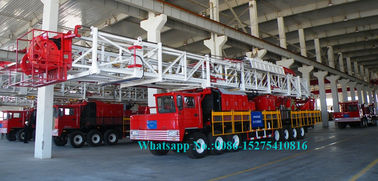

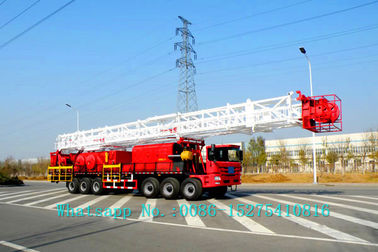

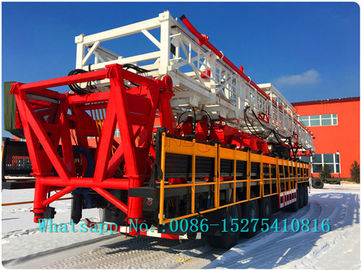

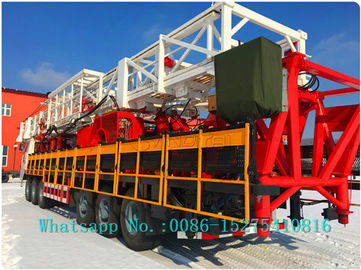

Products Photos:
Our Services
Presale Serivce:
Professional sales team supply personalized service according to customer's requirement.
Order operation:
We will start production of your order within 3 days with strict quality control.
Shipping:
According to different shipping requirements,our company logistics department will ship the Beiben tractor truck to you with our professional service. The necessary custom clearance documents such as contract, commercial invoice, packing list, certificate of origin will be sent to you.
After-sales Service:
Regularly callback to know the Beiben tractor truck working status and offer reasonable tech proposals.
Timely spare parts supply to guarantee the truck working continuously.
Our oversea engineers are ready all the time to serve.
