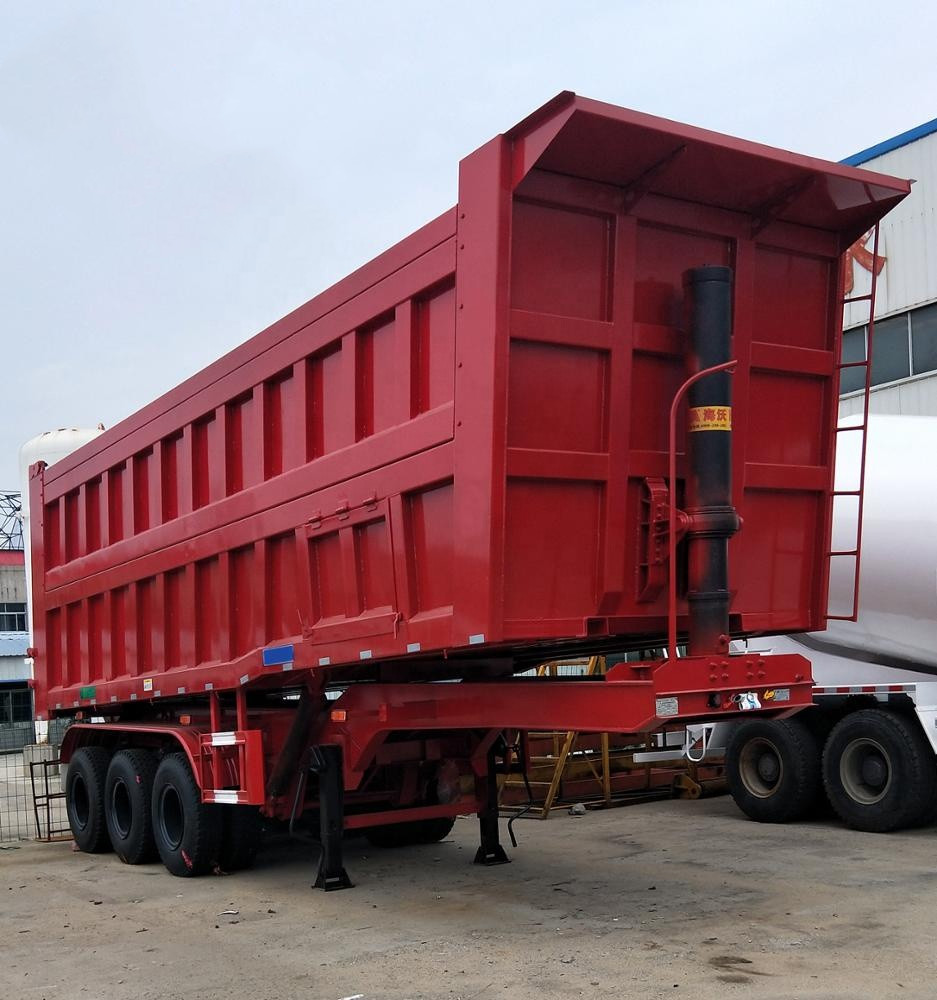

HYUAN Mining Semi Dump Truck Trailer And U Type Rear Tipping 12R22.5 Tire

HYUAN Mining Semi Dump Truck Trailer And U Type Rear Tipping 12R22.5 Tire

  • HYUAN Mining Semi Dump Truck Trailer And U Type Rear Tipping 12R22.5 Tire
  • HYUAN Mining Semi Dump Truck Trailer And U Type Rear Tipping 12R22.5 Tire
  • HYUAN Mining Semi Dump Truck Trailer And U Type Rear Tipping 12R22.5 Tire
HYUAN Mining Semi Dump Truck Trailer And U Type Rear Tipping 12R22.5 Tire
Product Details:
Place of Origin: Shandong, China (Mainland)
Brand Name: HYUAN
Certification: ISO CCC SGS
Model Number: HY6258617DU
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T
Supply Ability: 500 pieces per month
Contact Now
Detailed Product Description
Use: Truck Trailer Material: Steel
Max Payload: 50T Condition: New
Landing Gear: 28Tons Tire: 12R22.5
Axle: FUWA/BPW Or Optional King Pin: 90#/50#
High Light:

diesel semi trucks

,

low bed semi trailer

HYUAN Mining Semi Dump Truck Trailer And U Type Rear Tipping Trailer



Product Description



The Characteristics of The Tipper Trailer
1. Main-frame: Longitudinal beam, using high strength structural steel and offering bending and shock resistance, can met heavy load requirments.



2. Sub-frame: Using high strength 16Mn structural steel and intergrated hydraulic system increase operation accuracy. Widened turning point of tipper body increase the overall stability, reliability and safety of the operation.

3. Tipping mechanism: Mallery type rear dumping, front tipping rear dumping, side dumping mechanisms available for customer order.

4. Different types of suspension are designed for various operating condition: Bogie suspension; Air suspension; Mechanical suspension.

5. Lamp assembly uses advanced LED light, top quality PC and cast wire harness in dual circuit design.



Self-discharging semi-trailer is suitable for the transportation of loose bulk goods such as coal, ore and building materials.



The self-unloading semi-trailer, also known as the dump truck and engineering vehicle, consists of an automobile chassis, a hydraulic lifting mechanism, a suction device and a cargo compartment.



Widely used in construction engineering, municipal engineering, road construction, sanitation, mining, limestone kiln, stone plant, cement plant, cement plant, starch plant, brick plant, fire resistant plant, coking plant, phosphate fertilizer plant, chemical fertilizer plant, concentrator plant, construction team, railway station, coal yard, bee coal yard, wharf, etc.Can save manpower greatly, reduce labor intensity.



Product Parameter



Type
Dump tipper trailer
Function
Transport sand,stone
Tare Weight
7.85T-11T
Axle
3/4/5 axles, FUWA/BPW/YAHUA/HYUAN brand axle
Main beam
Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345 Carbon Steel. 16mm-25mm channel steel (Material is Q235 carbon steel)
Wheelbase(mm)
6700+1310+1310 or other
Suspension system
Mechanical or air suspension (American or German)
Lifting Type
Front side lifting
Platform plate
Steel Sheet 3mm thickness
Rim
6.5-20/8.25-22.5/9.00*22.5 /80-.0-20/8.5-20/9.0-20
Tire Type
11.00R22.5/12.00R22.5/10.00R20/11.00R20/12.00R20
Traction Pin
JOST 2" or 3.5" traction pin
Landing gear
JOST 28T
Spare Wheel Bracket
1 sets(Patent type)
Tool Box
1 sets(waterproof type)
Brake air chamber
Six double chamber
Light
Tail lamp with turn signal, brake light & reflector,side lamp etc.
Packing
Polish with wax before shipping



Product  Picture



HYUAN Mining Semi Dump Truck Trailer And U Type Rear Tipping 12R22.5 Tire 0HYUAN Mining Semi Dump Truck Trailer And U Type Rear Tipping 12R22.5 Tire 1HYUAN Mining Semi Dump Truck Trailer And U Type Rear Tipping 12R22.5 Tire 2HYUAN Mining Semi Dump Truck Trailer And U Type Rear Tipping 12R22.5 Tire 3
