| Place of Origin: | China |
| Brand Name: | XCMG |
| Certification: | ISO |
| Model Number: | XZ680A |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 sets per month |
| Condition: | New | Power Type: | Diesel |
|---|---|---|---|
| Usage: | Coal | Weight: | 23000kg |
| Max.pullback/thrusting: | 680KN | Type: | Core Drilling Rig |
| Dimension(L*W*H): | 11350*2800*3000mm | Pipe Diameter: | 107mm |
| High Light: | pile driving equipment,borehole drilling machine |
||

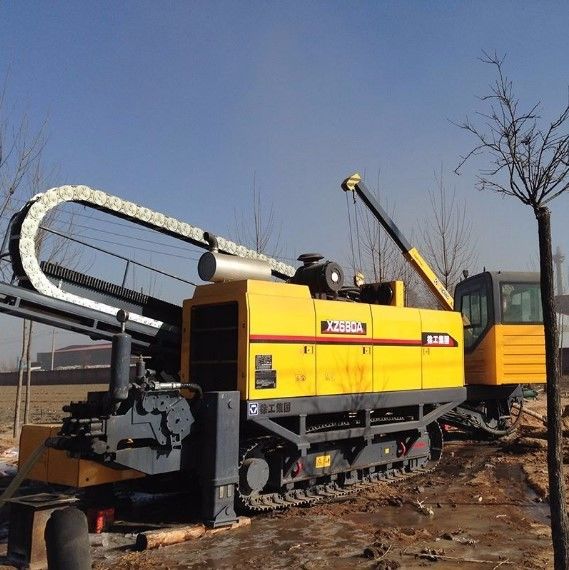

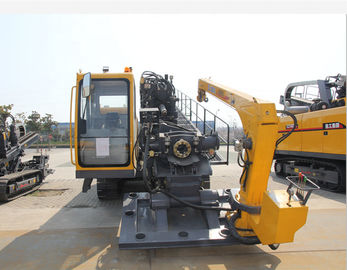

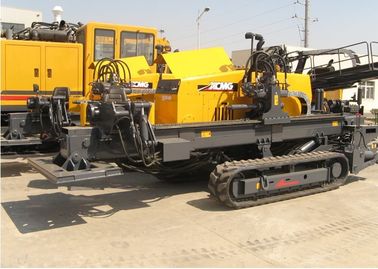

680KN XZ680A Horizontal Directional Drilling 12 Drilling Machine
Product Application
XZ Horizontal Directional Drills are mainly used in the trenchless piping construction and replacement of the underground pipe. The XZ Horizontal Directional Drills have the advantages of advanced performance, high efficiency and comfortable operation. Many key components adopt international famous products to guarantee the quality. They are the ideal machines for the construction of the water piping, gas piping, electricity, telecommunication, heating system, crude oil industry.
Product description
1.The gear and rack transmission makes stability and reliability, Carriage spindle floating toto protect the drill pipe thread and improve the service life of the rods.
2.Elastic equilibrium release technology is to avoid device damaging when pulling pipeline back, which increase the reliability.
3.Wire guided walking system makes moving safe.
4.Mud flux stepless speed regulation saves mud and reduce pollution.
5.Cab’s 45 ° rotation enhances comfortable operation.
Main Features
1) Clamp and carriage use double floating patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.
2) High-speed sliding systems, variable motor to achieve high and low carriage sliding change, increasing the ability to adapt the drilling rig working conditions, improve the efficiency of the drilling rig construction.
3) Support the diverse needs of customers, the machine can option configuration with the automatic(semi-automatic) drill pipe handling device, automatic anchoring system, cab, air conditioning wind, cold start, freezing mud, mud washing, mud throttling and other devices, can also be optioned more Eco saving with EU Stage IIIA.
Product parameters
| XZ680A HORIZONTAL DIRECTIONAL DRILL / XZ680A HDD MACHINE | ||
| ITEM | PARAMETER | |
| Engine | Make | Cummins |
| Model | QSL8.9-C360 | |
| Rated Power | 242KW / 2100 R/Min | |
| Operation | Type | Rack and pinion |
| Max. Thrust /Pullback Force | 800/800KN | |
| Max carriage thrust/pullback travel speed | 35M/Min | |
| Max. Spindle Torque | 35000 N·M | |
| Max. Spindle Speed | 110 R/Min | |
| Type | Self-Propelled Steel Track | |
| Ground Travel Speed | 3.0 Km/h | |
| Drill Rod/ Drill pipe | Diameter ×Length | Φ102mm×6000mm |
| Entry Angle | 18° | |
| Mud Pump | Max flow rate | 600L/Min |
| Max pressure | 10 | |
| Overall Weight | 21T | |
| Overall Dimension | 11610×2475×3115mm | |
