| Place of Origin: | Shandong, China (Mainland) |
| Brand Name: | Long Ye |
| Certification: | CE & ISO |
| Model Number: | MZ460Y |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 120 Set/Sets per Month |
| Payment Terms: | L/C, T/T |
| Power(W): | 84000 | Weight: | 5800 Kg |
|---|---|---|---|
| Walk Speed(km/h): | 0--2.5 | Climb Ability (°): | 35 |
| Dimension(L*W*H): | 6500*1970*2680 (mm) | Warranty: | One Year |
| Voltage: | 24 V | ||
| High Light: | pile driving equipment,borehole drilling machine |
||

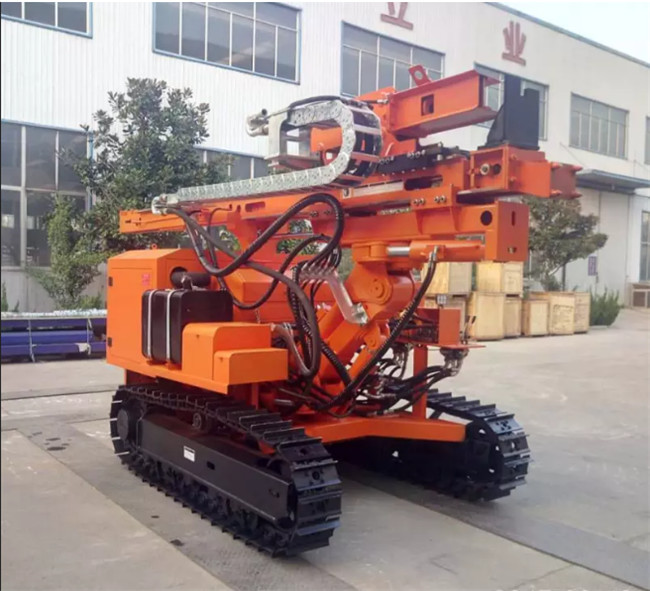

MZ460Y Solar Pile Driver Used for Photovoltaic System Installation sheet pile driving machine
Condition:New
Type:ramming pile driver
Power Type:Diesel
Place of Origin:Shandong, China (Mainland)
Brand Name:LongYe
Model Number:MZ460Y
Usage:photovoltaic solar farm ; sheet pile driving machine
Voltage:24 v
Power(W):84000
Dimension(L*W*H):6500*1970*2680 (mm)
Weight:5800 kg
Certification:CE & ISO
walk speed(km/h):0--2.5
impact frequency(bpm):500--950
impact(j):750
work pressure(bar):130--180
once promotion(mm):5000
skid pitch(°):120
boom swing angle(°):left and right total 50
skid swing angle(°):left and right total 40
climb ability (°):35
After-sales Service Provided:Engineers available to service machinery overseas
Warranty:one year
Product Description
MZ460Y Solar Pile Driver Used for Photovoltaic System Installation technology, convenient for hole transfer. The drilling machine structure is compact,.while the mast has adjustable compensation function, when drilling, the mast supported on the ground, borehole stability is good. The machine hydraulic pressure can be adjusted according to different soil textures, so as to achieve the appropriate impact power for pile driving, it is a new type of pile driver.
The drilling rig is mainly used in pile driving for photovoltaic Solar power station , pile driving for Highway guardrail, highway guardrail construction engineering construction, etc.
Technical parameters
| Technical parameters | |
| impact frequency(bpm) | 500--950 |
| impact(j) | 1000 |
| work pressure(bar) | 130---180 |
| Once promotion(mm) | 5000 |
| Skid pitch(°) | 120 |
| boom swing angle(°) | left and right total 50 |
| Swinging angle of skid(°) | left and right total 40 |
| host power(KW) | 84 |
| Climb ability(°) | 35 |
| Dimension(L*W*H)(mm) | 6500*1970*2680 |
| weight(Kg) | 5800 |
| Walk speed(km/h) | 0--2.5 |
Products pictures
