27T 600m Rotary Pile Drilling Rig With Directional Circulation BZC600CLCA

27T 600m Rotary Pile Drilling Rig With Directional Circulation BZC600CLCA

  • 27T 600m Rotary Pile Drilling Rig With Directional Circulation BZC600CLCA
  • 27T 600m Rotary Pile Drilling Rig With Directional Circulation BZC600CLCA
  • 27T 600m Rotary Pile Drilling Rig With Directional Circulation BZC600CLCA
27T 600m Rotary Pile Drilling Rig With Directional Circulation BZC600CLCA
Product Details:
Place of Origin: Shandong, China (Mainland)
Brand Name: BINZUAN
Certification: ISO900;SGS
Model Number: BZC400CHW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: nude
Delivery Time: 70days
Payment Terms: T/T, L/C
Supply Ability: 2 Set/Sets per Quarter
Contact Now
Detailed Product Description
Condition: New Voltage: 380V
Weight: 27T Chassis: HOWO SINOTRUK
Usage: Water Well Dimension(L*W*H): 15543x2480x4032mm
High Light:

pile driving equipment

,

borehole drilling machine

BZC600CLCA 600m good price deep water well drilling rig rotary drilling rig





Quick details



Condition:New

Type:Rotary Drilling Rig

Power Type:Diesel

Place of Origin:Shandong, China (Mainland)

Brand Name:BINZUAN

Usage:Water Well

Voltage:380V

Dimension(L*W*H): 15543x2480x4032mm

Weight:27T

Certification:ISO900;SGS

Warranty:1 Year

After-sales Service Provided:Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service

chassis:HOWO SINOTRUK

depth:600m

diameter:500mm





Product Description

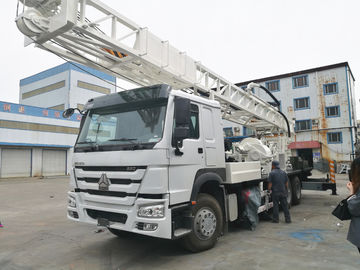

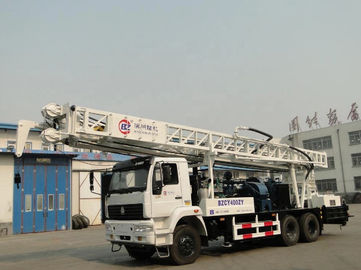

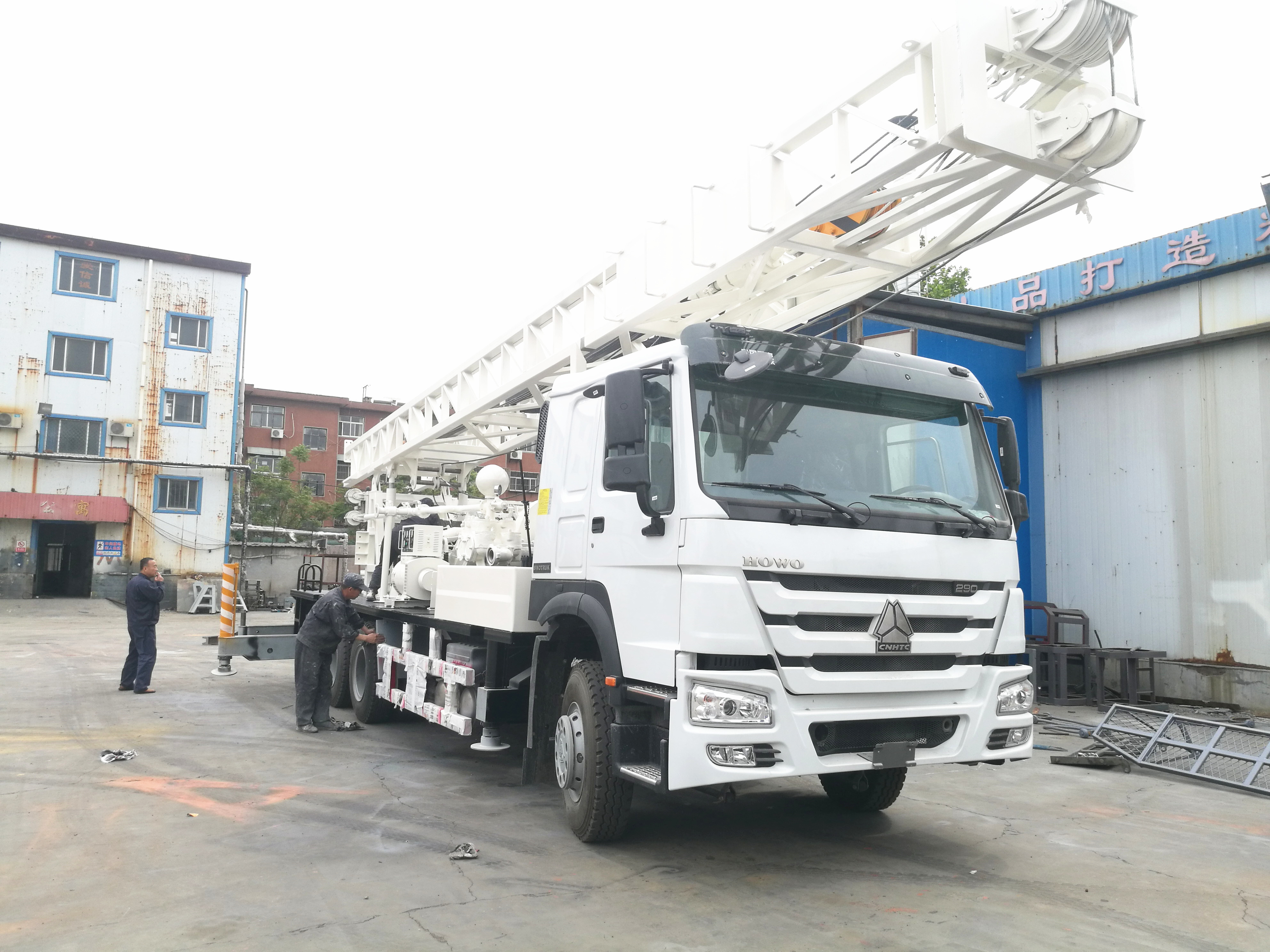

BZC600CLCA truck mounted drilling rig is designed by our engineers. It is a kind of truck mounted and rotary drilling rig.

- The truck chassis adopts the special crane chassis of brand CCAT 8X6 and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable, drilling tower, feed mechanism are set up on the chassis.

- This rig is a rotary drilling rig with directional circulation. It is equipped with 3NB-130 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

- The power of drilling rig comes from the truck engine; the rig has distribute implement and hydraulic system.

-We install the spare electric engine and clutch implement according to client’s requirement, so that the rig can work with diesel engine or electric engine.-- We set up a generator (MF) which is convenient to illuminate or work at night.

- There are pressure device on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.

- The main drive of rig is mechanical and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are air operated.

- According to client’s requirement, the rig can carry out down-the-hole hammer drilling with USA Sullair, Japan PDSKIOOS, Sweden Atlas, China Kaishan, Hongwuhuan; can carry out air lifting reverse circulation drilling with air-water tap, double-wall drilling pipe, gas-water separator; can carry out Hydraulic DTH hammer drilling rock breaking with mud pump; can carry out core-drilling with other special drilling tools.

- The appearance of rig is pretty. It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.

Technical parameter

Drilling depth(M) 600
Drilling diameter(mm) 500
Speed of turntable(r/min) 117;102;60;38;22;13;16(reverse)
Torque of turntable(KN.m) 5.4----50
Single rope lifting capacity of main windlass(KN) 50
Maximum lifting capacity of main windlass(KN) 300
Single rope lifting capacity of assistant windlass(KN) 60
Single rope lifting capacity of assistant windlass(KN) 240
Rated lifting capacity of hook(KN) 300
Rate Bearing capacity of drilling tower (KN) 320
The height of drilling tower (mm) 15000
Drill pipe Kelly bar(mm) 108×108×10500
Assistant pipe (mm) .D89×10×9000





3NB-130 mud pump



Theoretical flow (L / min) 1000
Rated pressure (Mpa) 5
Input power (kw) 95
Weight (kg) 3900
Size (mm) 2160×1400×1300







Truck chassis

Drive form 8×6



Engine

Model YC6A260-33YC water-cooled four stroke diesel engine
Rated power(KW) 191
Speed (r/min) 2300
Size (L*W*H)(mm) 11510*2480*2800
Electric generator Model MF
Rated power (kw) 30
Rated voltage(v) 380
Rated current(A) 27
Speed (r/min) 1500
Frequency(Hz) 75
The highest speed(Km/h) 75
Weight (kg) 27500
Transport size(L*W*H)(mm) 15543×2480×4032
Working size(L*W*H)(mm) 11139×2480×16749



27T 600m Rotary Pile Drilling Rig With Directional Circulation BZC600CLCA 027T 600m Rotary Pile Drilling Rig With Directional Circulation BZC600CLCA 127T 600m Rotary Pile Drilling Rig With Directional Circulation BZC600CLCA 227T 600m Rotary Pile Drilling Rig With Directional Circulation BZC600CLCA 327T 600m Rotary Pile Drilling Rig With Directional Circulation BZC600CLCA 427T 600m Rotary Pile Drilling Rig With Directional Circulation BZC600CLCA 5
