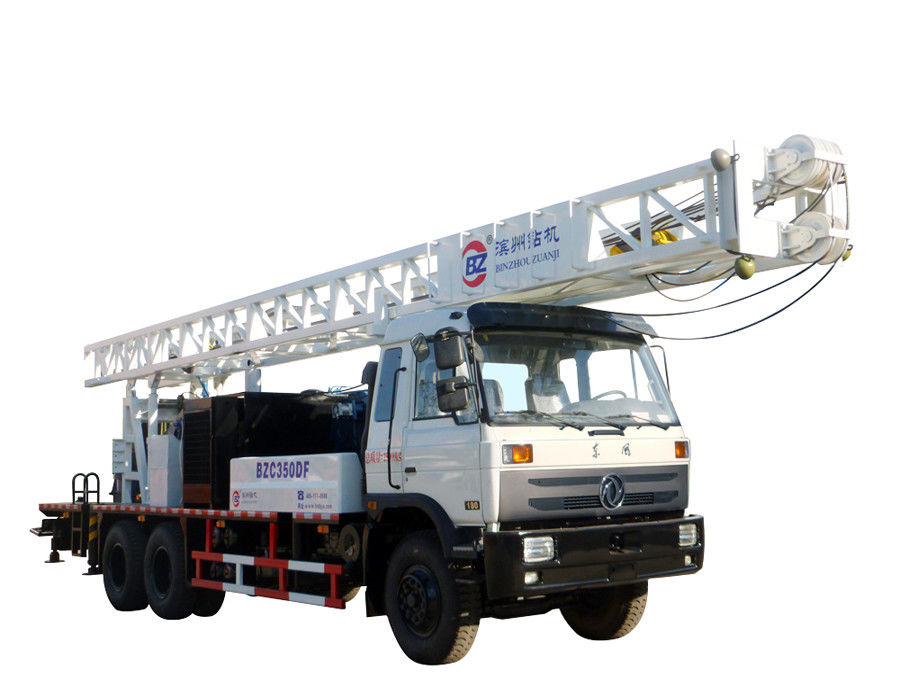

300 Meters Depth Rotary Drilling Rig / Borehole Drilling Machine Truck Mounted

300 Meters Depth Rotary Drilling Rig / Borehole Drilling Machine Truck Mounted

    • 300 Meters Depth Rotary Drilling Rig / Borehole Drilling Machine Truck Mounted
    • 300 Meters Depth Rotary Drilling Rig / Borehole Drilling Machine Truck Mounted
    • 300 Meters Depth Rotary Drilling Rig / Borehole Drilling Machine Truck Mounted
  • 300 Meters Depth Rotary Drilling Rig / Borehole Drilling Machine Truck Mounted

    Product Details:

    Place of Origin: China
    Brand Name: BZ
    Certification: CCC/ISO
    Model Number: BZC300CDF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiation
    Packaging Details: Nude
    Delivery Time: 30-45 work days
    Payment Terms: L/C, T/T
    Supply Ability: 50 pieces per month
    Contact Now
    Detailed Product Description
    Drilling Depth(m): 300 Chassis: DONGFENG
    Fuel Type: Diesel Transportation Size: 12450*2450*4000
    Generator: 30kw Drill Rod: 89mm (3-1/2”)
    High Light:

    pile driving equipment

    ,

    borehole drilling machine

    Water Well Drilling Machine 300 Meters Depth Rotary Drilling Rig Borehole Drilling Machine



    Quick Details


    Applicable Industries:Construction works , Energy & Mining

    Condition:New

    CNC or Not:CNC

    Drilling Speed:10

    Place of Origin:Shandong, China

    Brand Name:BINZUAN

    Model Number:BZC300CDF

    Voltage:380V

    Power(W):97000

    Dimension(L*W*H):12.5*2.5*4M

    Certification:ISO9001:2008 ;SGS

    type:truck mounted

    Range of Spindle Speed(r.p.m):50 - 110

    Max. Drilling Dia. (mm):1000

    Warranty:

    1 Year

    After-sales Service Provided:

    Online support, Video technical support, Free spare parts, Field maintenance and repair service

    Key Selling Points:Multifunctional

    drill depth:300m

    open hole diameter:500mm

    stratum:all kinds

    Application:bore hole construction

    Keyword:water well drilling rig

    Color:any

    Service Life:for ever

    brand:BINZUAN

    Weight:21t

    Supply Ability:10 Set/Sets per Quarter


    Product features



    BZC300DF water well drilling machine is designed by our engineers; it adopts truck mounted and is a rotary drilling rig.
    The truck chassis adopts the 6X4 special crane chassis of brand DONGFENG TRUCK, the main transmit, transmission power, gearbox, sets of windlass, mud pump, sewage pump,mast are set up on the chassis.

    This rig is a rotary drilling machine with directional circulation, which is equipped with BW850/2A mud pump, It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit. The power of drilling rig comes from the NC6110ZG17-20(115kw) independent engine, the rig setups distribute implement and hydraulic system.

    We can upset the spare electric engine and clutch implement according to client's requirement, so that the rig can work with diesel engine or electric engine.The adding pressure device is hydraulic, so it has a high efficiency when the rig drill on mud rock and weathering formation through using the adding pressure implement.

    The master driving of rig is mechanical, the four jacks and mast are hydraulic operated. Distribute box, sewage pump, master driving clutch system are air operated.
    The appearance of rig is pretty, it has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular with domestic and foreign clients.


    Our customer all over the world



    African countries:

    Congo, Tanzania, Djibouti, Angola, Chad, Algeria, Sudan, Libya, Eritrea, Uganda, Rwanda, Burundi and the Seychelles. Mauritania, Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Côte d'Ivoire, Ghana, Togo, Benin, Niger, Nigeria , Namibia, Cameroon, Equatorial Guinea, Ethiopia, Kenya , Gabon and Zambia, Angola, Zimbabwe, Malawi, Mozambique, Botswana, and so on.



    South America:
    Colombia, Venezuela, Guyana, French Guiana, Suriname, Ecuador, Peru, Bolivia, Brazil, Chile, Argentina, Uruguay, Paraguay, Guatemala, Belize, El Salvador, Honduras, Nicaragua, Costa Rica, Panama, Antigua and Barbuda

    South Pacific:
    Papua New Guinea, Northern Mariana Islands, French Polynesia, Fiji, Guam, Heard and McDonald Islands, Kiribati, Cocos Islands, Cook Islands, Republic of the Marshall Islands, American Samoa, Microrony West Asia, Nauru, Niue, Norfolk Island, Palau, Pitcairn Islands, Samoa, Christmas Island, Solomon Islands, Tonga, Tuvalu, Tokelau, Wallis and Futuna, Vanuatu, New Caledonia.

    Asia countries:
    North Korea, Mongolia, including Vietnam, Laos, Cambodia, Myanmar, Thailand, Malaysia, Singapore, Indonesia, Philippines, Brunei, Sri Lanka, Maldives, Pakistan, India, Bangladesh, Nepal, Bhutan, Afghanistan, Iran, Azerbaijan, Armenia, Georgia, Turkey, Cyprus, Syria, Lebanon, Palestine, Jordan, Iraq, Kuwait, Saudi Arabia, Yemen, Oman, United Arab Emirates, Qatar, Bahrain, Turkmenistan, Uzbekistan, Kyrgyzstan, Tajikistan, Kazakhstan.



    Technical parameter

    Parameter
    Drill depth 300(m)
    Drill rod 89mm (3-1/2”)
    Winch capacity Main hook lifting capacity (kN) 180
    Auxiliary hook lifting capacity(kN 120
    Max- rope speed of main winch(m/min) 80
    Max- rope speed of auxiliary winch(m/min) 100
    Rotary table Inner diameter (mm) 500
    Rotate speed (rpm) 47;71;106
    Max-torque(kN.m) 15
    Mast Height(mm) 11900
    Rated load(t) 24
    Drill tool Kelly(mm) 108*108*7500
    Drill rod(mm) 89*6000
    Mud pump Displacement 850L/min Pressure 2Mpa
    Displacement 600L/min Pressure 3Mpa
    Diesel engine Cummins 6BT5.9-C130 97 KW/2200rpm
    Transportation size (L)*(W)*(H) (mm) 12450*2450*4000

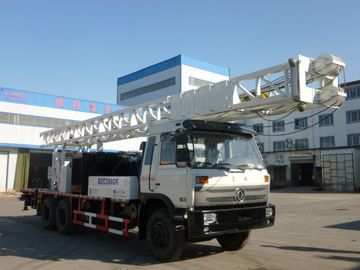

    Product picture



    300 Meters Depth Rotary Drilling Rig / Borehole Drilling Machine Truck Mounted 0300 Meters Depth Rotary Drilling Rig / Borehole Drilling Machine Truck Mounted 1300 Meters Depth Rotary Drilling Rig / Borehole Drilling Machine Truck Mounted 2300 Meters Depth Rotary Drilling Rig / Borehole Drilling Machine Truck Mounted 3
