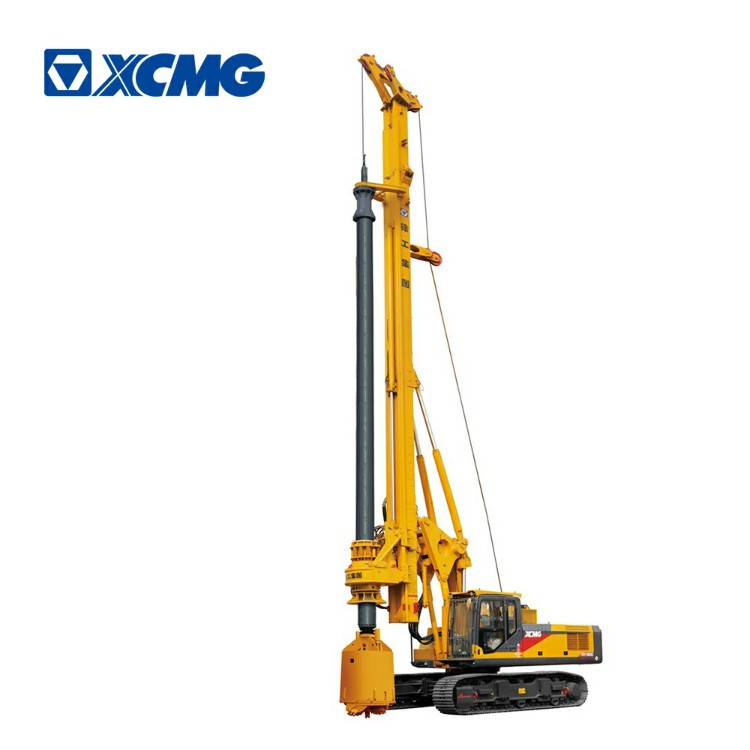

220V / 380V Mobile Conventional Drilling Rig CUMMINS QSB6.7 XR180D

220V / 380V Mobile Conventional Drilling Rig CUMMINS QSB6.7 XR180D

    • 220V / 380V Mobile Conventional Drilling Rig CUMMINS QSB6.7 XR180D
    • 220V / 380V Mobile Conventional Drilling Rig CUMMINS QSB6.7 XR180D
    • 220V / 380V Mobile Conventional Drilling Rig CUMMINS QSB6.7 XR180D
  • 220V / 380V Mobile Conventional Drilling Rig CUMMINS QSB6.7 XR180D

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: XCMG
    Certification: ISO
    Model Number: XR180D

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Negotiable
    Packaging Details: NUDE
    Delivery Time: 10-30days
    Payment Terms: L/C, T/T
    Supply Ability: 1000 set/month
    Contact Now
    Detailed Product Description
    Weight: 58000kg Drilling Depth: 60m
    Model: CUMMINS QSB6.7 Voltage: 220V/380V
    Dimension(L*W*H): 8350*4200*20480mm Drilling Diameter: 1800mm
    High Light:

    pile driving equipment

    ,

    borehole drilling machine

    XCMG Official Manufacturer XR180D Mobile Rotary Drilling Rig Rotary Drilling Tools Conventional Drilling Rig



    Product Quick Details:



    Condition:New

    Type:Rotary Drilling Rig

    Power Type:Diesel

    Place of Origin:Jiangsu, China

    Brand Name:XCMG

    Usage:Ore

    Voltage:220V/380V

    Dimension(L*W*H):8350*4200*20480mm

    Weight:58000kg

    Certification:CE/ISO9001

    Warranty:1 Year

    After-sales Service Provided:Field installation, commissioning and training

    Engine model:CUMMINS QSB6.7

    Max. Drilling Depth:46m

    Moving Type:Crawler

    Rotary table slewing angle:360°



    Product Features:



    XR180D Rotary Drilling Rig

    1,With the special hydraulic telescopic crawler chassis (TDP series) ofrotary drill rig and large diameter slewing bearing, it meets strong stabilityand easy transportation.

    2,With the electronically controlled and turbocharged engine of Cummins,which is powerful and emissions meet Euro standards.

    3,The hydraulic system adopts the limit of power control and positive flowcontrol, that makes the hydraulic system more energy and efficient.

    4,With the single rope main winch, it efficiently solves the problemof wire rope wear, and improves the service life of wire rope; a detectiondevice of drilling depth on the main winch, and single rope makes deepinspection more accuracy.

    5,The design of whole machine meets the requirements of the CEdirective, that guarantees safety, and construction safer.

    6,Configure centralized lubrication system, which makes maintenancemore convenient.

    7,Selection of a variety of specifications for Kelly-bar, meeting the efficient construction ofdifferent strata.

    8,Multi-function such as crowd winch,spin-offof rotary drive,casing driver and hydraulic casingoscillator is optional selected.

    9,The removable type key. Of rotary drive makes maintenance andexchange more convenient.



    It adopts dedicated hydraulic retractable crawler chassis and heavy slewing bearing and has high stability.

    The imported Cummins turbo-supercharged engine is powerful, and has sufficient power reserve.

    The machine adapt single row rope for main winch to figure out the wear of steel rope. extend the life-span. And high reliability.

    The machine adapt single row rope for main winch to figure out the wear of steel rope. extend the life-span. And high reliability.

    The oil cylinder and sleeve-driven functions are available for selection to satisfy various needs of the users.

    Normal mode and entering-rock mode of unit head are available for operation in soil and rock to improve the construction efficiency.

    It is equipped with a centralized lubrication system as standard configuration; maintenance is easy.



    Product Specification:



    Project Unit Parameter
    Max.Drilling Diameter
    Uncased (mm) φ1800
    Cased (mm) φ1500
    Max.Drilling Depth (m) 60
    Dimension
    Working condition L × W × H (mm) 8350×4200×20480
    Transportation condition L × W × H (mm) 14255×2960×3450
    Overall Drilling Weight (t) 56
    Engine
    Model - CUMMINS QSB6.7-C260
    Rated Power (kW) 194/2200
    Hydraulic System
    Working pressure (MPa) 35
    Rotary Drive
    Max. output torque (kN.m) 180
    Rotary speed (r/min) 7~27
    Spin off speed (r/min) 102
    Pull-Down Cylinder
    Max.pull-down piston push (kN) 160
    Max.pull-down piston pull (kN) 180
    Max.pull-down piston stroke (mm) 5000
    Drilling mast
    Left/right inclination of mast (°) 42432
    Front inclination of mast (°) 5
    Rotary table slewing angle (°) 360
    Traveling
    Max. traveling speed (km/h) 2.3
    Max.grade ability (%) 35
    Crawler
    Track shoe width (mm) 700
    Distance between tracks (mm) 2960~4200
    The length of crawler (mm) 5140
    Average ground pressure (kPa) 93.6
