Gooseneck Lowboy Low Bed Semi - Trailer 50t 60t 80t For Container Transportation

Gooseneck Lowboy Low Bed Semi - Trailer 50t 60t 80t For Container Transportation

    • Gooseneck Lowboy Low Bed Semi - Trailer 50t 60t 80t For Container Transportation
    • Gooseneck Lowboy Low Bed Semi - Trailer 50t 60t 80t For Container Transportation
    • Gooseneck Lowboy Low Bed Semi - Trailer 50t 60t 80t For Container Transportation
    • Gooseneck Lowboy Low Bed Semi - Trailer 50t 60t 80t For Container Transportation
  • Gooseneck Lowboy Low Bed Semi - Trailer 50t 60t 80t For Container Transportation

    Product Details:

    Place of Origin: China
    Brand Name: LUYI
    Certification: ISO CCC
    Model Number: Custom

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negotiation
    Packaging Details: Nude
    Delivery Time: 25-30 work days
    Payment Terms: L/C, T/T
    Supply Ability: 500 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Size: 13000*3000*(700mm-1200mm) Max Payload: 80T
    Brake System: WABCO Valve King Pin: 2"(50mm)or3.5"(90mm) JOST
    Landing Gear: Standard 28Ton Axle Brand: FUWA/BPW Brand Or Optional
    Tire: 11.00r20 12r22.5 315 385 Color: Optional
    High Light:

    diesel semi trucks

    ,

    low bed semi trailer

    40t 50t 60t 80t Gooseneck Lowboy Low Bed Semi-trailer lowbed trailer Optional Color​



    Product Description



    1. The flatbed semi trailer use advanced manufacture technology , makes automatic submerged-arc welding for vertical beam, use shot blasting treatment for intergral frame, removes welding stress effectively.



    2. Flatbed trailer are mainly used in heavy duty transpotation, such as container transportation.



    3. The capacity of container semi trailer is for 20ft, 30ft, 40ft, 45ft containers, we could manufacture it according to your need.



    4. The axles of flatbed container trailer can be FUWA, BPW or other brand with diferent tonnages by your need.



    5. The suspension system of 2 axles, 3 axles flatbed semi trailer can be mechanical suspension , air suspension or bogie suspension according to your need.



    Product parameter



    Dimensions 13000*3000*(700mm-1200mm) (According to customer demand)
    Axle number Two,Three or Four and more
    Axle specs. FUWA ,YAHUA or BPW Brand
    Suspension Mechanical or air supension (American or German)
    Rim 6.5-20/8.25-22.5/9.00*22.5 /80-.0-20/8.5-20
    King Pin JOST 2" or 3.5" traction pin
    Support legs JOST, FUWA or YAHUA brand 28T
    Wheelbase 7180/6680/6260+1310+1310mm,Or other
    Steel Spring 8/8/8, 10/10/10, 12/12/12 pieces per axle
    Ladder Manual or hydraulic automatic
    Electrical system 24V, 7 pin socket, One set 7-core standard Cable
    Tire 8.25R20/8.25R16/11.00R22.5/12.00R22.5/10.00R20/11.00R20/12.00R20
    Number of Tire 8 or 12 or 16 pieces
    Spare Tire Carriers 2 pieces
    The material of Main beam Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345 Carbon Steel.
    Side beam 16mm-25mm channel steel (Material is Q235 carbon steel)
    Platform plate 5/6/7 mm Diamond Plate
    Brake Kemi Brand of China
    Brake Chamber WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TAIYUE brand); One piece of 45L air tanks
    ABS system optional
    Light Tail lamp with turn signal, brake light & reflector, side lamp etc
    Tool box 1 sets(waterproof type)
    Spare tire carrier 1 sets(Patent type)
    Color and logo According to customer demand
    Painting Complete Chassis sand blasting to clean rust, 2 coat of anticorrosive primer, 2 coats of final paint
    Packing Polish with wax before shipping

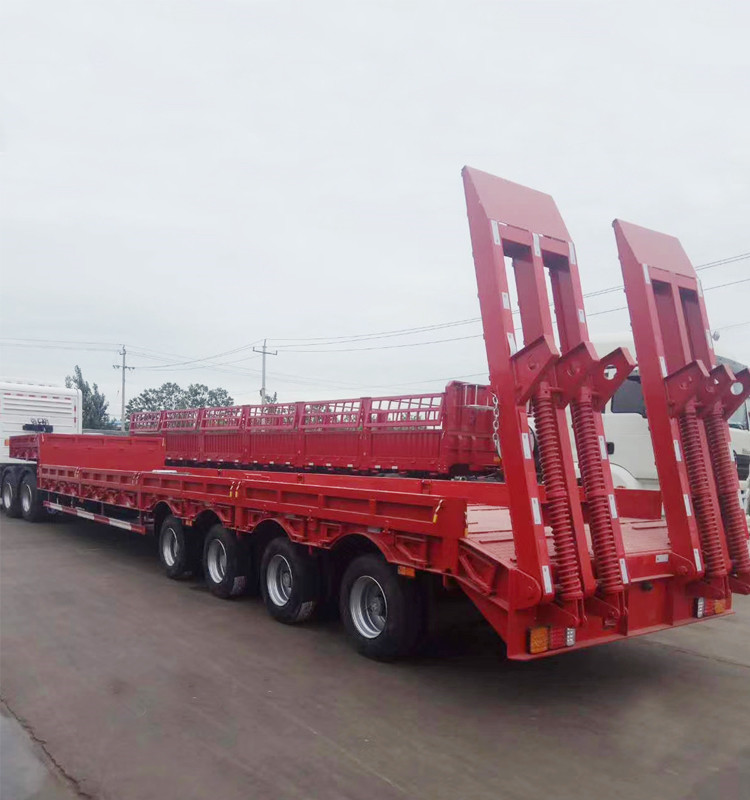

    Product picture



    Gooseneck Lowboy Low Bed Semi - Trailer 50t 60t 80t For Container Transportation 0Gooseneck Lowboy Low Bed Semi - Trailer 50t 60t 80t For Container Transportation 1Gooseneck Lowboy Low Bed Semi - Trailer 50t 60t 80t For Container Transportation 2
