Multi Axle Heavy Duty Modular Lowboy Semi Trailer 100 150 200 Ton Hydraulic Modular

Multi Axle Heavy Duty Modular Lowboy Semi Trailer 100 150 200 Ton Hydraulic Modular

    • Multi Axle Heavy Duty Modular Lowboy Semi Trailer 100 150 200 Ton Hydraulic Modular
    • Multi Axle Heavy Duty Modular Lowboy Semi Trailer 100 150 200 Ton Hydraulic Modular
    • Multi Axle Heavy Duty Modular Lowboy Semi Trailer 100 150 200 Ton Hydraulic Modular
    • Multi Axle Heavy Duty Modular Lowboy Semi Trailer 100 150 200 Ton Hydraulic Modular
  • Multi Axle Heavy Duty Modular Lowboy Semi Trailer 100 150 200 Ton Hydraulic Modular

    Product Details:

    Place of Origin: China
    Brand Name: Zhongyibaohang
    Certification: CCC/ISO
    Model Number: ZYBHLB004

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Nude
    Delivery Time: 30-45 work days
    Payment Terms: L/C, T/T
    Supply Ability: 500 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Use: Truck Trailer Material: Carbon Steel
    Size: 14550x3000x2900mm Max Payload: 200T
    Loading Capacity: 25T~80T According To Your Requestment Total Weight: 40000kg
    Axle Brand: BPW / FUWA / Shandong Local Axle Wheel Rim: 8.25*22.5/9.00*22.5 Zhengxing Brand
    High Light:

    diesel semi trucks

    ,

    low bed semi trailer

    100 150 200 Ton Hydraulic Modular  Axle Heavy Duty Modular Lowboy Truck Semi Trailer



    Product Description ​



    1.Low bed semi trailer is widely used to machinery transport.

    2.Low bed semi trailer is produced by heavy duty and extra durability designed I beam; opting for high tensile Q345, welded by automatic submerged-Arc processes.Greatly promote the trailer strong and stability.

    3.Painting:Complete chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coat of final paint
    4.Suspension:Bogie suspension; Air suspension; Mechanical suspension optional.



    Quality Guarantee



    - All spare parts are from famous brand or your Customized.
    - All spare parts are testing before assembly.
    - High quality automatic and manual welding.
    - Quality control supervisor do inspection before delivery.
    - Acceptance for third party inspection.



    Product parameter



    Vehicle Use Mainly used to transport large equipment, e.g. motor, excavator, heavy duty truck, car, bus, tractor, railway vehicles, mining machinery, forestry machinery, construction machinery, excavator, earthmover, mechanical loader, paver, crane, etc
    Dimensions 14550x3000x2900mm
    Loading Capacity 80T~300T according to your requestment
    Floor Material Q345B,
    Thickness 3mm ~ 6mm Diamond steel plate
    Main Beam Q345B Strong Main Beam,
    Height 500mm
    Upper Thickness 14mm ~ 20mm,
    Middle Thickness 8mm ~ 12mm
    Down Thickness 16mm ~ 22mm
    Side Beam Q235 Carbon Steel,
    25mm Channel steel
    Cross Beam 14mm Channel steel
    Gooseneck Customer optional
    Ladder Manual or Hydraulic type
    Axle Weight Load 13T/16T/20T
    Axle Brand BPW / FUWA / Axle Made in Shandong
    Suspension System Mechanical Suspension, Air Suspension, Bogie Suspension
    Wheel Rim 6.5-20 / 7.5-20 / 8.00-20 / 8.5-20
    Zhengxing brand
    Tire 8.25R20 / 10.00R20 / 11.00R20 / 12.00R20
    Triangle, Chengshan, Doublestar, Linglong
    King Pin JOST 2.0 inch (50mm)/3.5 inch (90mm)
    Landing Gear JOST / FUWA 28T or according to your request
    Twist Locks 4, 8, 12pieces (Lifting type or Twist Screw type), optional
    Brake System WABCO Valve with big chamber
    ABS Customer optional
    Lights Turning Light, Side Marker Light, Tail Light
    Voltage 24V
    Receptacle 7 ways (7 wire harness)
    Tool Box Customer optional
    Spare Tire Carriers Customer optional
    Painting Color Common China made Paint / Polyurethane paint, Color optional
    Customization According to your request
    Packing Nude Packing (by Bulk Cargo Ship, Ro-ro Ship, or Land Transportation)
    Delivery Time 15~25 days after deposit received.

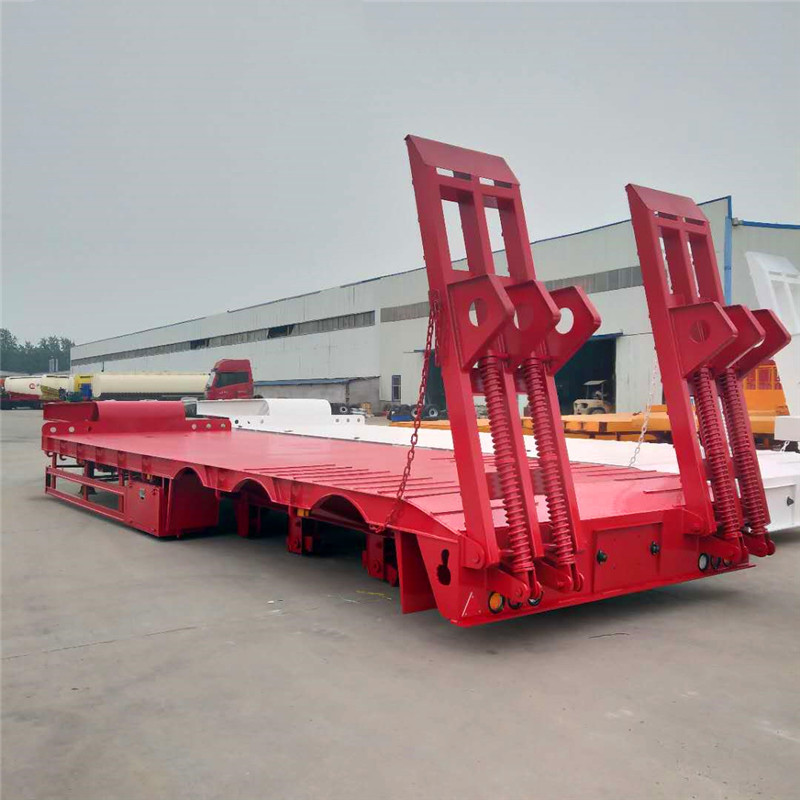

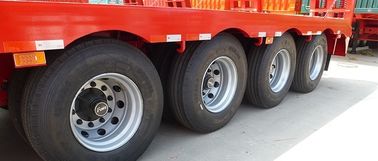

    Product picture



    Multi Axle Heavy Duty Modular Lowboy Semi Trailer 100 150 200 Ton Hydraulic Modular 0Multi Axle Heavy Duty Modular Lowboy Semi Trailer 100 150 200 Ton Hydraulic Modular 1Multi Axle Heavy Duty Modular Lowboy Semi Trailer 100 150 200 Ton Hydraulic Modular 2Multi Axle Heavy Duty Modular Lowboy Semi Trailer 100 150 200 Ton Hydraulic Modular 3
