| Place of Origin: | China |
| Brand Name: | XCMG |
| Certification: | CE ISO |
| Model Number: | XZ200 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Unit/Units per Month |
| Max.thrust-pull: | 225KN | Engine Model: | CUMMINS6BTAA5.9-C150 |
|---|---|---|---|
| Rotation Torque: | 6350 N.m | Pipe (diameter*length): | 60mm*3m |
| Max.thrust-pull Speed: | 26m/min | Engine Rated Power: | 112kw |
| Rotation Spindle Speed: | 160r/min | Model: | XZ200 |
| High Light: | pile driving equipment,borehole drilling machine |
||
Yellow China XCMG 200KN Horizontal Directional Drilling Machine XZ200 8.5Ton
Product description
Adopting specifically made hydraulic track and long diameter slewing bearing to insure high stability and transporting conveninence;Original packaging imported CUMMINS turbo charging engine provides strong drive power and meets Euro III emission standards; The hydraulic system uses limit power control and flow control to be high energy efficient; Single rope main winch to be an effective solution to the problem of wire rope wear, effectively improve the service life of wire rope; Detection device is installed on the main winch and the single layer rope makes depth detection more accurate; Machine designed to meet the requirements of CE directives, security and safer construction are guaranteed; A variety of configurations (such as: leg cylinders, casing drivers, etc.) are designed according to users' requirements to insure high scalability; Standard centralized lubrication systems make maintenance more convenient; A variety of specifications of the drilling rods are optional to meet the efficient construction of different strata.
Main Features
1) It adopts the dedicated hydraulic retractable crawler chassis and large diameter slewing bearing to provide extraordinary stability and transport convenience.
2) With the hydraulic pressure system adopted threshold power control and negative flow control,the system acquired high efficiency and higher energy conservation.
3)Using single rope winding, effectively solve the steel wire rope wear problem, improve the life of wire rope; And drill deep detection device is setted in main winding,single rope to make deep inspection more accurate.
4) The whole machine design meet the requirements of the CE directive, safety guarantee, construction safer.
5) The detachable unit head drive key can provide easy maintenance and replacement.
6)It adopts the cummins electric control turbo-supercharged engine to provide strong power and conformity with Euro III emission standard.
Product parameter
|
Description |
unit |
specification |
|
|
|
XZ200 |
|
Dimension LxWxH |
mm |
5900x2250x2400 |
|
Overall weight |
t |
8.5 |
|
Engine model |
|
6BTAA5.9-C150 |
|
Engine power |
KW |
112/2200 |
|
Thrust-pull mode |
|
Rack and pinion |
|
Max.pullback/thrusting |
KN |
220/220 |
|
Max.spindle torque |
N.m |
6350 |
|
Spindle speed |
r/min |
0-160 |
|
Spindle traveling speed |
m/min |
0-26 |
|
Max.backreaming diameter |
mm |
600 |
|
Pipe length(single) |
m |
3 |
|
Pipe diameter |
mm |
60 |
|
Entry angle |
0 |
10-22 |
|
Max.mud flow rate |
L/min |
250 |
|
Max.mud pressure |
bar |
80 |

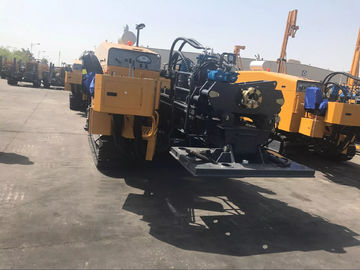

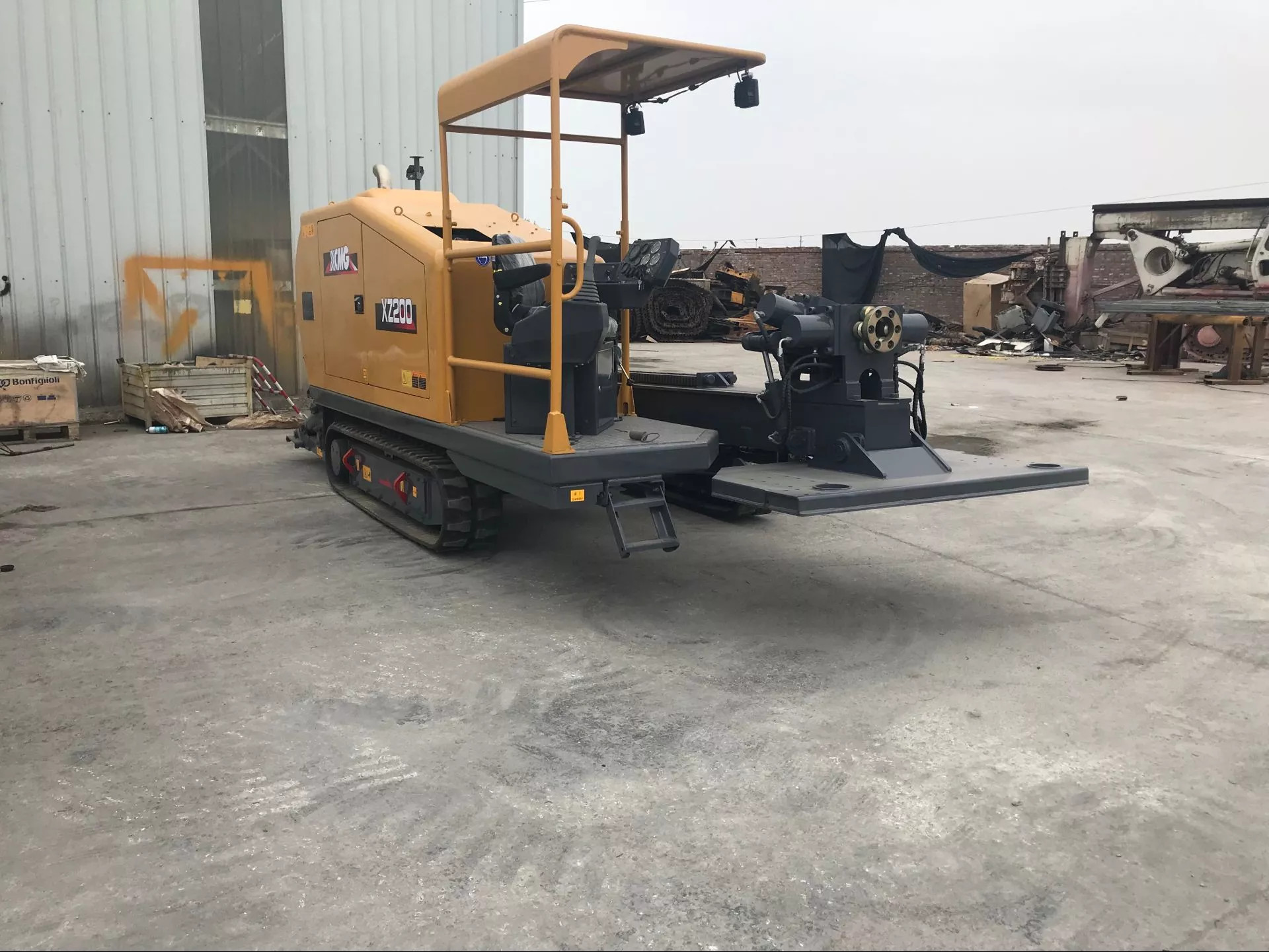

Product picture
