400m 6x4 371HP Euro 2 Truck Mounted Drill Rig With Sinotruk Chassis

Product Details:

Place of Origin:	China
Brand Name:	HOWO
Certification:	CC
Model Number:	BZC400ZY

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	Negotiation
Packaging Details:	Nude
Delivery Time:	30-45 work days
Payment Terms:	L/C, T/T
Supply Ability:	500 pieces per month

Contact Now

Detailed Product Description

Drilling Depth(m)::	400	Chassis Model::	HOWO
Power::	247kw	Overall Size::	1216024903440
Bearing Capacity::	30 T	The Highest Speed(Km/h)::	75
Highlight:	pile driving equipment , borehole drilling machine

400m 6x4 371HP Euro 2 Truck Mounted Drilling Rig With SINOTRUK Chassis

Product parameter

Technical parameter
Drilling depth(M)		80	400
Drilling diameter(mm)		1500	500
Speed of turntable(r/min)		21.2;36;63.2;100.6;155;20.2(reverse)
Torque of turntable(KN.m)		18;10.6;6;3.8;2.5;18.9(reverse)
Single rope lifting capacity of main windlass(KN)		45
The capacity of main windlass(KN)		270
Single rope lifting capacity of hydraulic windlass(KN)		40
The capacity of hydraulic windlass(KN)		160
The lifting capacity of hook(KN)		270
Bearing capacity of mast (KN)		270
The height of mast (mm)		11500
Bearing capacity (t)		30
Pipe	Kelly(mm)	108×108×7500
	Assistant pipe (mm)	89×10×5500
Hydraulic pump	Model	CB-HP80/40
	Pump delivery (ml/r)	80/40
	Rated speed (r/min)	2000
	Rated pressure(MPa)	20
BW850/2A plunger pump	Diameter of cylinder (mm)	150
	Stroke of piston (mm)	180
	Theory of flow (L / min)	600 850
	Rated pressure (Mpa)	3 2
	Pounding times (min^-1)	58 82
	Diameter of suction tube (mm)	127
	Diameter of drain pipe (mm)	64
	Input speed (r / min)	470
	Input power (kw)	40
	Overall dimensions (mm)	200010301400
	Weight (t)	1.5
Electric generator	Model	MF
	Rated power (kw)	15
	Rated voltage(v)	400
	Rated current(A)	27
	Speed (r/min)	1500
	Frequency(Hz)	50
	Protection level	IP21
	Insulation Class	H
The best working gear (or speed)		5^thgear(1000-1400r/min)
The highest speed(Km/h)		75
Weight(kg)		19340
Transport size(LWH)(mm)		1216024903440

Product feature

1. BZC400ZY truck mounted drilling rig is designed by our engineers; it adopts truck mounted and is a rotary drilling rig.

2. The truck chassis adopts the 6X4 special crane chassis of brand SINOTRUK, the main transmit, transmission power, gearbox, sets of windlass, mud pump, sewage pump,mast are setup on the chassis.

3. This rig is a rotary drilling rig with directional circulation, which is equipped with BW850/2A mud pump, It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit.

4. The power of drilling rig comes from the truck engine, the rig sets up distribute implement and hydraulic system.

5. We can set up the spare electric engine and clutch implement according to client's requirement, so that the rig can work with diesel engine or electric engine.

6. We can set up a generator (15kw) , so that it is convenience to illuminate or work at night.

7. The adding pressure implement is hydraulic, so it has a high efficiency when the rig drill on mud rock and weathering formation through using the adding pressure implement.

8. The master driving of rig is mechanical, the four jacks and mast are hydraulic operated. Distribute box, sewage pump, master driving clutch system are air operated.

9. The appearance of rig is pretty, it has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular with domestic and foreign clients.

Packing:

Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.Rich experience and well after-sale service.

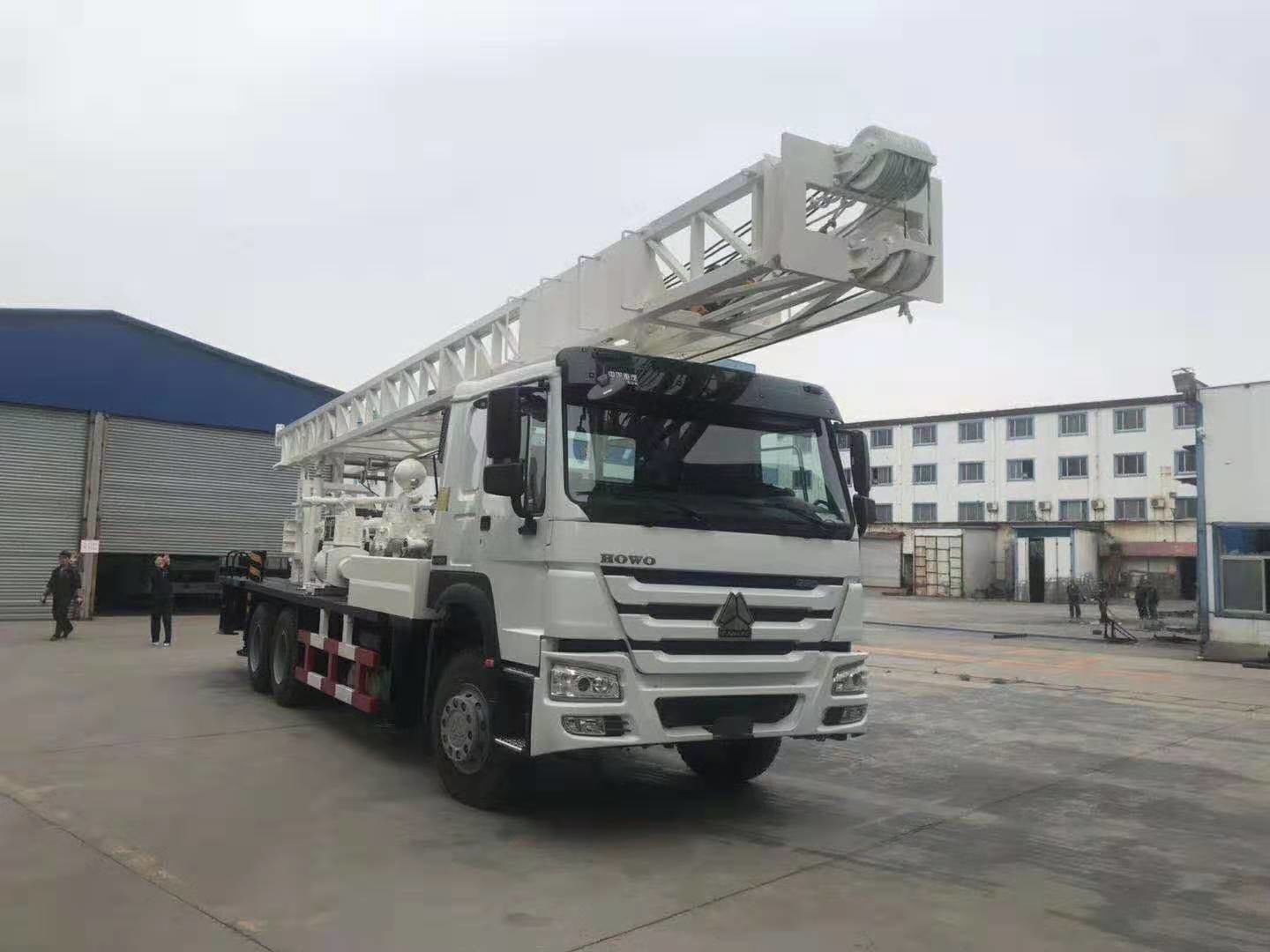

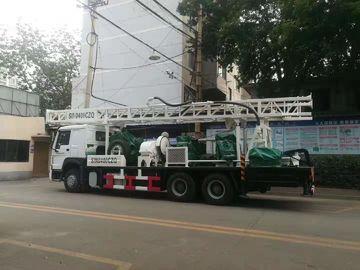

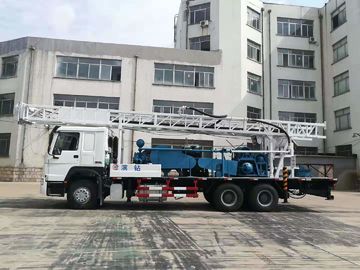

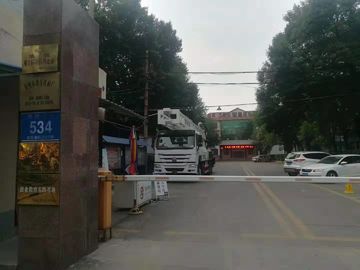

Product picture

400m 6x4 371HP Euro 2 Truck Mounted Drill Rig With Sinotruk Chassis 0
