    Product Details:

    Place of Origin: China
    Brand Name: XCMG
    Certification: CE/ ISO
    Model Number: XZ1000A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiation
    Packaging Details: Nude
    Delivery Time: 30-45 work days
    Payment Terms: L/C, T/T
    Supply Ability: 1000 Unit/Units per Month
    Contact Now
    Detailed Product Description
    Engine: 6LTAA8.9-C360 Model: XZ1000A
    Dimension: 11500*2900*3000MM Color: Yellow
    Max.thrust-pull Force: 1075kN Maximum Pressure: 10MPa
    Maximum Inclination Angle: 18° Weight: 23000kg
    High Light:

    pile driving equipment

    ,

    borehole drilling machine

    XCMG Horizontal Directional Drilling Rig Tools Machine Rock Bore XZ1000A Yellow

    Product description



    XZ Horizontal Directional Drills are mainly used in the trenchless piping construction and replacement of the underground pipe. The XZ Horizontal Directional Drills have the advantages of advanced performance, high efficiency and comfortable operation. Many key components adopt international famous products to guarantee the quality. They are the ideal machines for the construction of the water piping, gas piping, electricity, telecommunication, heating system, crude oil industry.

    Adopting specifically made hydraulic track and long diameter slewing bearing to insure high stability and transporting conveninence;Original packaging imported CUMMINS turbo charging engine provides strong drive power and meets Euro III emission standards; The hydraulic system uses limit power control and flow control to be high energy efficient; Single rope main winch to be an effective solution to the problem of wire rope wear, effectively improve the service life of wire rope; Detection device is installed on the main winch and the single layer rope makes depth detection more accurate; Machine designed to meet the requirements of CE directives, security and safer construction are guaranteed; A variety of configurations (such as: leg cylinders, casing drivers, etc.) are designed according to users' requirements to insure high scalability; Standard centralized lubrication systems make maintenance more convenient; A variety of specifications of the drilling rods are optional to meet the efficient construction of different strata.



    1. Closed loops, hydraulic pilot control, load sensing control help to save energy and operate flexibly.

    2. The gear and rack transmission makes stability and reliability, floating patented technology for carriage and vice is to improve service life of rods' thread.

    3. Optional reinforcing carriage to double the pull-back force to meet specific construction.

    4. Dimension is small enough to be transported in container.

    5. Wire guided walking system makes moving safe.



    6,Elastic equilibrium release technology is to avoid device damaging when pulling pipeline back, which increase the reliability.

    7,Mud flux stepless speed regulation saves mud and reduce pollution.



    8,Cab’s 45 ° rotation enhances comfortable operation.



    Product parameter



    Description Unit Parameter value
    Engine Manufacturers   Cum--mins
    China III Model   QSL8.9-C360
    Rated Power kW /(r/min) 264 / 2100
    China II Model   6BTAA8.9-C360
    Rated Power kW /(r/min) 264/ 2200
    Thrust-Pull Max thrust-pull force kN 1075
    Max thrust-pull speed m/min 35
    Rotation Torque N·m 43000
    Max spindle speed r/min 100
    Loader Crance Max. Lifting weight t 2
    Loading capacity t·m 4
    Max inclination angle ° 18
    Travel driving Type   Self-propelled crawler
    Traveling speed Km/h 2.5
    Pipe Diameter × Length mm×mm Φ127×6000
    Mud pump Max Flow rate L/min 600
    Weight kg 23000

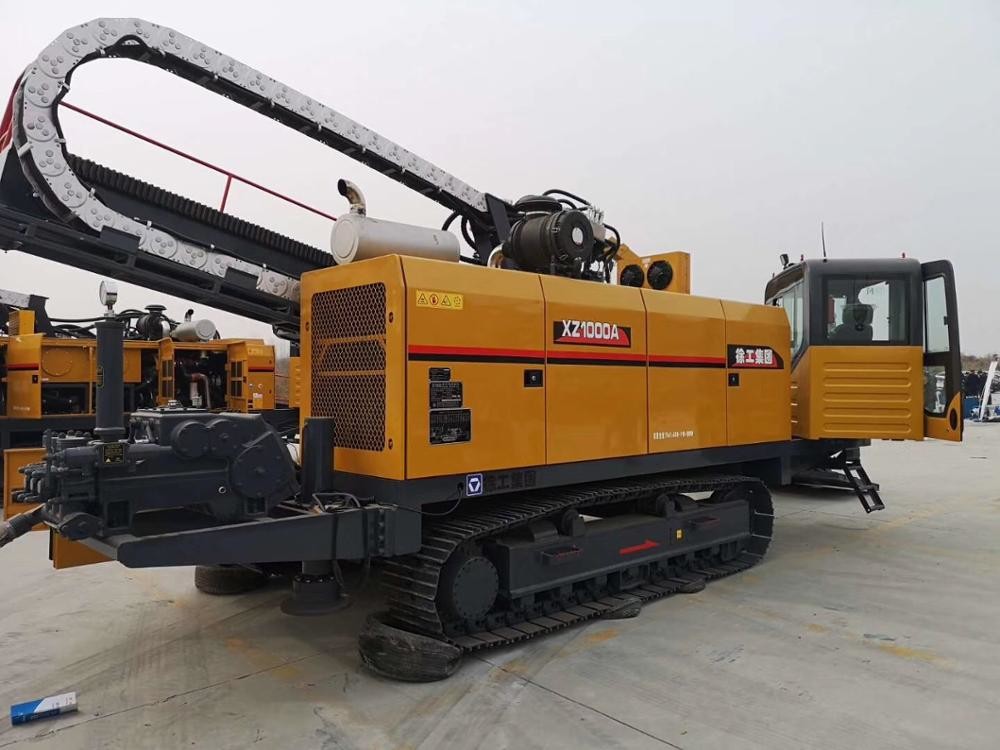

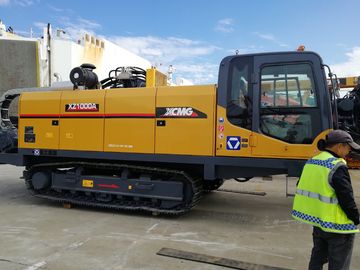

    Product picture



    XCMG Horizontal Directional Drilling Rig Tools  Rock Bore XZ1000A Yellow 0XCMG Horizontal Directional Drilling Rig Tools  Rock Bore XZ1000A Yellow 1XCMG Horizontal Directional Drilling Rig Tools  Rock Bore XZ1000A Yellow 2XCMG Horizontal Directional Drilling Rig Tools  Rock Bore XZ1000A Yellow 3
