| Place of Origin: | Shandong, China |
| Brand Name: | Hengwang |
| Certification: | ISO |
| Model Number: | HW-230 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | NUDE |
| Delivery Time: | 5-15DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 500 SETS/MONTH |
| Voltage: | 380V Or Diesel Engine | Weight: | 1150kg |
|---|---|---|---|
| Drlling Depth: | 230m | Engine: | Weichai |
| Geology Condition: | Soil ,sand ,rock ,etc | Dimension(L*W*H): | 2700*950*1770mm |
| High Light: | pile driving equipment,borehole drilling machine |
||
Cheap Water Well Drilling Rig Machine With Diesel Engine For Drilling 150m Portable Pipe Drilling
Quick details
Condition:New
Type:Core Drilling Rig
Power Type:Diesel
Place of Origin:Shandong, China
Brand Name:Hengwang
Usage:Water Well
Voltage:380V or diesel engine
Dimension(L*W*H):2700*950*1770mm
Weight:1150kg
Certification:ISO
Warranty:1 Year
After-sales Service Provided:Video technical support, Online support, Engineers available to service machinery overseas
drlling depth:230m
drilling diameter:75-300mm
Color:can be customized
efficiency:20m /h
Engine:Weichai
Drill rod:Dia.50mm,Dia.60mm
with mud pump:yes
diesel engine:22hp
geology condition:soil ,sand ,rock ,etc
Product Description

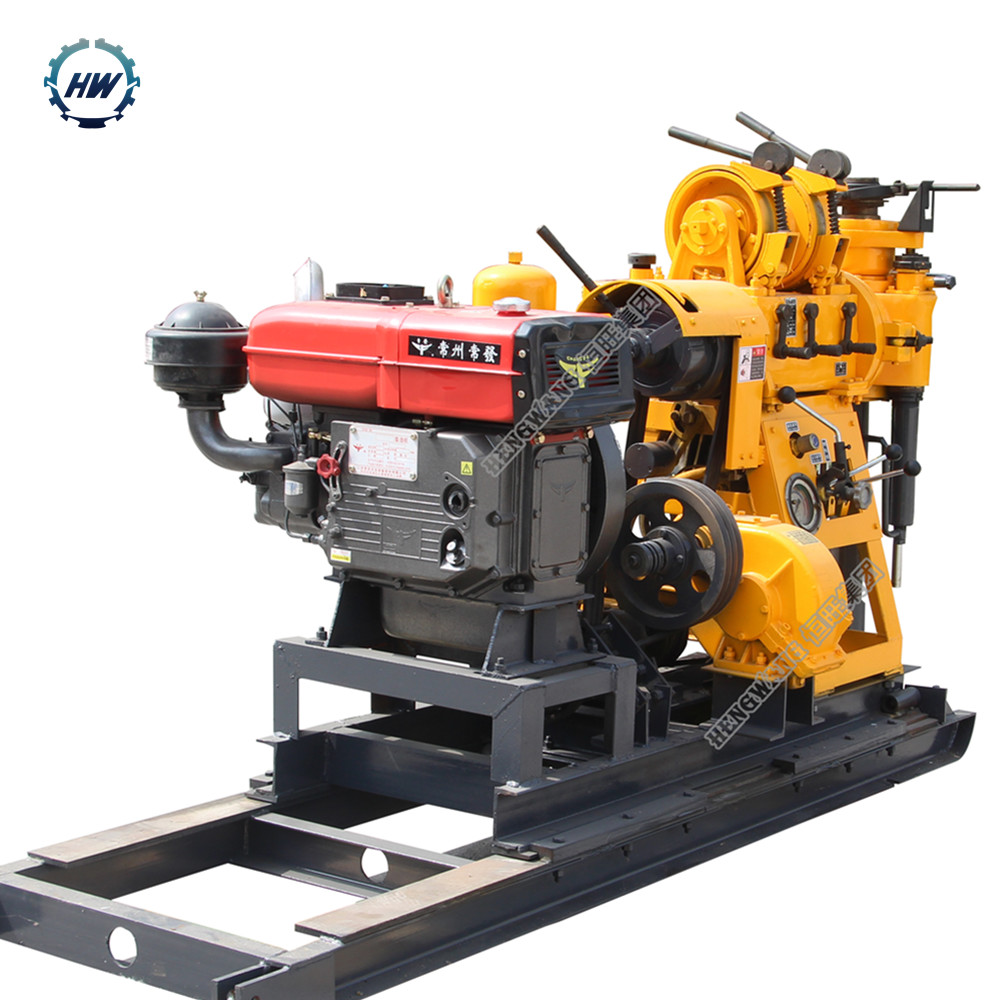

HW-230 portable water well drilling rig equipped with BW-160 mud pump and 22HP diesel engine, Max. drilling depth can be 230m with the opening diameter of 75-400mm, trailer, crawler, and tractor chassis for choice.
a. the machine is equipped with crawler chassis device, easy to move with fast speed.
b. hydraulic oil pressure feed device, improve drilling efficiency.
c. pressure gauge display the condition of the bottom of the drill hole.
d. drill mast controlled by hydraulic cylinder, improve the efficiency diesel engine adopt the electric starter, to reduce the labor intensity.
Technology Parameter
| Drilling depth | 230m |
| Maximum borehole caliber | 300mm |
| Minimum borehole caliber | 75mm |
| Diameter of Drill pipe | 42/50/60mm |
| Drilling angle | 90°~75° |
| Weight(Not include power) | 1150kg |
| Unity machine dimension | 2750*950*1770mm |
| 2.Vertical Spindle | |
| Spindle rotating speed | 64/128/287/557r/min |
| Spindle stroke | 450mm |
| 3.Hoist | |
| Max. single line lifting capacity | 2400kg |
| Reel lifting speed | 1.64m/s |
| Steel wire rope diameter | 13mm |
| Steel wire rope capacity | 35m |
| Hug floodgate diameter | 245mm |
| Hug floodgate belt width | 70mm |
| Movable distance | 400mm |
| 4. Mud pump | |
| Type | BW-160 |
| Type | Horizontal Single Cylinder with double function |
| Max. Discharge | Diesel engine 170L/min |
| Electrical Motor 140L/min | |
| Max. Pressure | 3MPa |
| Work Pressure | 1.5MPa |
| 5. Power | |
| Diesel engine | 22HP |
| Electric Motor | 15KW |
| 6. Drilling tower | |
| Type | Integrated on drilling rig |
| Control system | Hydraulic |
| 7. Trailer chassis | |
| Type | 4 wheels |
Product Real Photos
