Binzuan BZC300CHW Water Well Drilling Machine With 6×4 Howo Chassis 300m Depth

Binzuan BZC300CHW Water Well Drilling Machine With 6×4 Howo Chassis 300m Depth

    • Binzuan BZC300CHW Water Well Drilling Machine With 6×4 Howo Chassis 300m Depth
    • Binzuan BZC300CHW Water Well Drilling Machine With 6×4 Howo Chassis 300m Depth
    • Binzuan BZC300CHW Water Well Drilling Machine With 6×4 Howo Chassis 300m Depth
    • Binzuan BZC300CHW Water Well Drilling Machine With 6×4 Howo Chassis 300m Depth
  • Binzuan BZC300CHW Water Well Drilling Machine With 6×4 Howo Chassis 300m Depth

    Product Details:

    Place of Origin: China
    Brand Name: BINZUAN
    Certification: ISO
    Model Number: BZC300CHW

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiation
    Packaging Details: Nude
    Delivery Time: 30-45 work days
    Payment Terms: L/C, T/T
    Supply Ability: 50 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Dimension(L*W*H): 12500*2450*3950 MM Drilling Diameter: 1500mm-500mm
    Auxiliary Windlass: 160KN Assistant Pipe: 89x10x5500 Mm
    Transport Size: 12500x2490x4100 Mm Weight: 25000 Kg
    Power Type: Diesel
    High Light:

    pile driving equipment

    ,

    borehole drilling machine

    BINZUAN BZC300CHW Water Well Drilling Machine With 6×4 HOWO Chassis 300m Depth

    Product description



    BZC300CHW is truck mounted 300m water well drilling machine. It can drill in different layer(Clay layer, sandy soil layer, weathered rock, bedrock etc) with suitable drilling tools.With reasonable design, superior performance and complete tools, it can drill with different technology, eg. mud, air foam drilling, DTH drilling, air- lifting reverse drilling to suitable different stratum.

    The rig has auxiliary rod relief cylinder which push the ratchet teeth reverse rotation to dismantle the first joint thread of drill pipe, then rotarytable reverse rotate,so lighten labor intensity and improve the life of spare parts.

    Rotary table is the main part of drilling machine.Gear and bearing lubrication way is splash lubrication. When drilling, must put lubricating oil.Open the bolt on the rotarytable neck and open the oil spilling hole plug of the body, add the oil from the neck until the oil outflows from the spilling hole.Summer use 85W/90GL-5 gear oil, winter use 85W/90GL-4 gear oil .



    Maintenance:

    1. In order to improve the life of drilling machine, reduce the accident,improve the work efficiency, please master the structure of the rig and maintain it.

    2. keep the rig clean,get away the mud,dirt,fatlute etc.

    3. Pay attention to the bearing. Rig temperature is less 70℃, temperature rise less 40℃. If exceed the number, should stop work to check.

    4. Pay attention to the gear and transmission parts sounds, if they are abnormal, stop to work and checking immediately.

    5. Check triangle belt, if find problem,should change. Make sure the rotating parts has necessary gap, avoid friction.



    Main functions of drilling:

    1. Obtain underground physical data and obtain core, cuttings, oil, water, natural gas, etc. from the bottom of the well.

    2. As a geophysical logging channel, obtain data on various geophysical fields of the rock formation, such as underground military fire tests.

    3. As an artificial channel, observe the mineral, hydrological and geological structures in the stratum.

    4. Comprehensive application, comprehensive exploration and acquisition, and the use of underground resources.





    Product parameter



    Parameter
    Drill depth 300(m)
    Drill rod 89mm(3-1/2”)
    Winch capacity Main hook lifting capacity (kN) 180
    Auxiliary hook lifting capacity(kN 160
    Max- rope speed of main winch(m/min) 60
    Max- rope speed of auxiliary winch(m/min) 60
    Rotary table Inner diameter (mm) 500
    Rotate speed (rpm) 47;71;107
    Max-torque(kN.m) 10
    Mast Height(mm) 11900
    Rated load(t) 25
    Drill tool Kelly(mm) 108*108*7500
    Drill rod(mm) 89*6000
    Mud pump Displacement 850L/min Pressure 2Mpa
    Displacement 600L/min Pressure 3Mpa
    Diesel engine Cummins 6BT5.9-C150 97KW/2200rpm
    Transportation size (L)*(W)*(H) (mm) 12500*2500*4000

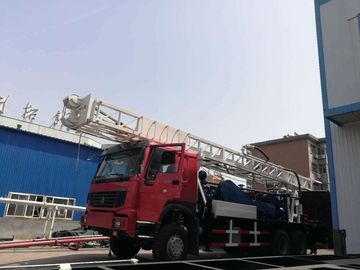

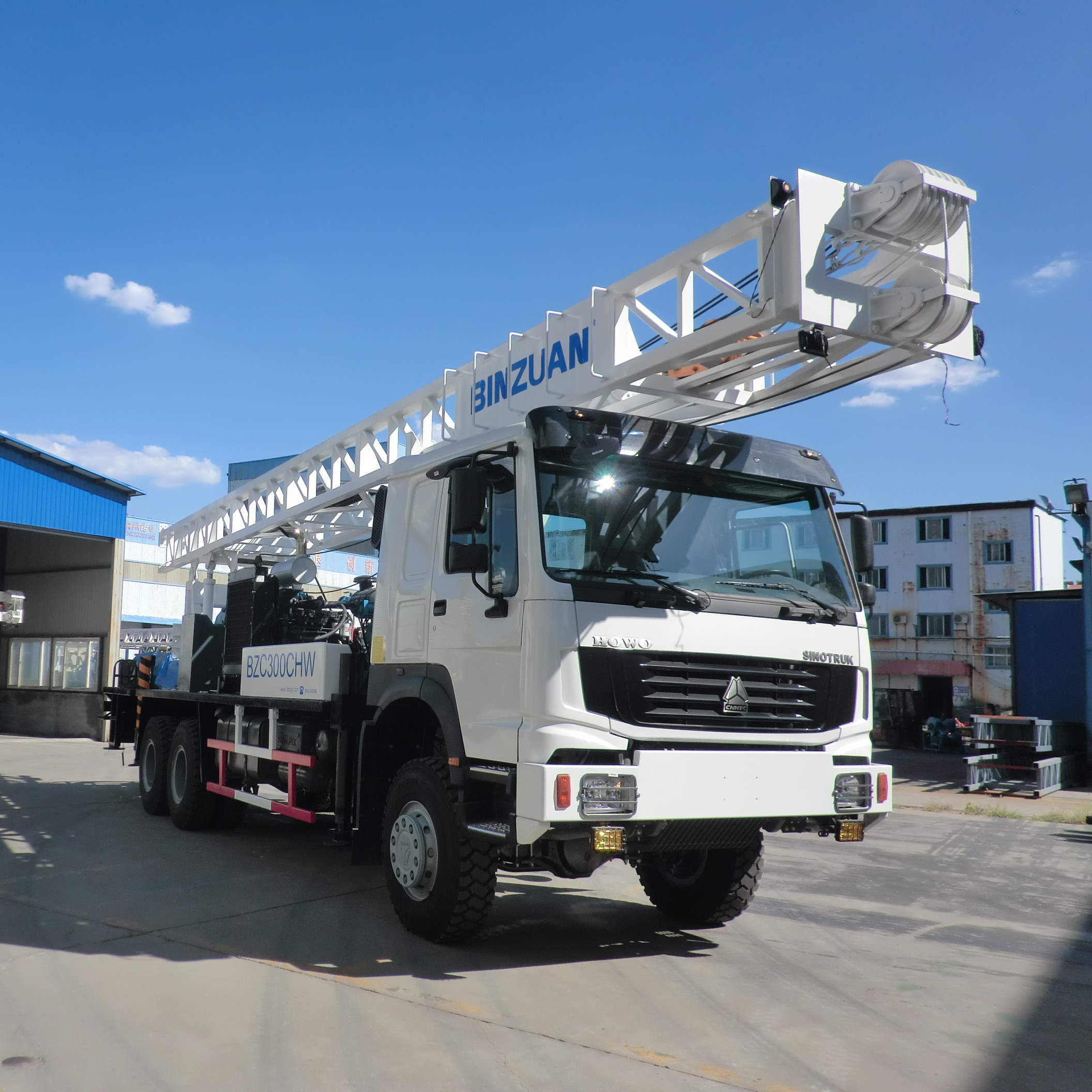

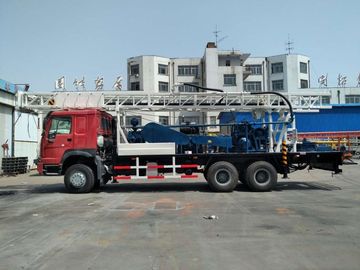

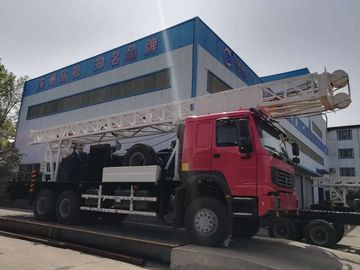

    Product picture



    Binzuan BZC300CHW Water Well Drilling Machine With 6×4 Howo Chassis 300m Depth 0Binzuan BZC300CHW Water Well Drilling Machine With 6×4 Howo Chassis 300m Depth 1Binzuan BZC300CHW Water Well Drilling Machine With 6×4 Howo Chassis 300m Depth 2Binzuan BZC300CHW Water Well Drilling Machine With 6×4 Howo Chassis 300m Depth 3
