BZC400CHW Truck Mounted Pile Drilling Machine 400m Depth Sinotruk Chassis

BZC400CHW Truck Mounted Pile Drilling Machine 400m Depth Sinotruk Chassis

    • BZC400CHW Truck Mounted Pile Drilling Machine 400m Depth Sinotruk Chassis
    • BZC400CHW Truck Mounted Pile Drilling Machine 400m Depth Sinotruk Chassis
    • BZC400CHW Truck Mounted Pile Drilling Machine 400m Depth Sinotruk Chassis
  • BZC400CHW Truck Mounted Pile Drilling Machine 400m Depth Sinotruk Chassis

    Product Details:

    Place of Origin: China
    Brand Name: BZ
    Certification: CCC/ISO
    Model Number: BZC400CHW

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiation
    Packaging Details: Nude
    Delivery Time: 30-45 work days
    Payment Terms: L/C, T/T
    Supply Ability: 50 pieces per month
    Contact Now
    Detailed Product Description
    Drilling Depth(m): 400 Chassis: HOWO
    Fuel Type: Diesel Transportation Size: 12160*2490*3440 Mm
    Generator: 30kw Drill Rod: 89mmx6000mm
    High Light:

    pile driving equipment

    ,

    borehole drilling machine

    BZC400CHW Truck-mounted Water Well Drilling Rig 400m Drilling Depth SINOTRUK Chassis



    Quick Details


    Condition:New

    Type:Drilling Rig

    Power Type:Diesel

    Place of Origin:Shandong, China (Mainland)

    Brand Name:BINZUAN

    Usage:Water Well

    Voltage:380V or others

    Dimension(L*W*H):12160*2490*3440 mm

    Weight:21650 kg

    Certification:ISO9001:2008

    Warranty:1 YEAR

    After-sales Service Provided:Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service

    drill depth:400m

    open hole diameter:500mm

    drill ways:mud &air

    mast capacity:30T

    generator:30kw

    Drill rod:89mmx6000mm

    Application:all kinds of stata


    Product features



    1. BZC400CHW truck mounted water well drilling rig is our direct rotary drilling rig. The rig adopt SINOTRUK 6X4/6X6 special rig chassis . It is equipped with Cummins diesel engine 112kw on the chassis as drilling power.

    2. There are hydraulic double winches, the two winches stepless rise and down, can achieve fast down the hook.

    3. This rig is a rotary drilling rig with directional circulation, which is equipped with BW850/2 mud pump, It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit

    4 We set up a generator , so that it is convenience to illuminate or work at night.

    4. It has a hydraulic cylinder control double card board forward and backward, it makes the insurance card board closed, to achieve stuck or release the pipe joints.

    5. It use integrated design of pneumatic, to achieve the BW850 mud pump clutch using pneumatic remote control, it has high degree of automation and easy-saving operation.

    6. It is installed 4 hydraulic legs and 2 mechanical legs, every hydraulic leg rod with locknut. After leveling the rig, it can lock the cylinder use locknut. So, even if the cylinder leaks, the chassis is not instability.

    7. The rotary table use stir bars, internal turntable use spiral arc gear to transmission, it has large torque, it about 2 times of similar products at domestic and foreign.

    8.. This drilling rig equipped with an auxiliary unloading cylinder, it can be used to promote the turntable ratchet, to achieve unloading the first thread , then reverse the rotary table to protect gear box.

    9. The appearance of rig is pretty, it has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular with domestic and foreign clients.

    BZC400CHW truck-mounted water well drilling rig is truck-mounted rotary drilling rig.The drilling rig adopts the chassis of SINOTRUK HOWO 6×4 or 6×6 special vehicle.The diesel engine,double hydraulic winches,mud pump,rotary table,mast,kelly are all installed on the chassis.BZC400CHW water well drilling rig can drill with mud pump,air foam pump .It is highly adaptable to the stratum structure and can be used for drilling in clay,sand,highly weathered rock,bedrock,basalt and other strata.



    Our customer all over the world



    African countries:

    Congo, Tanzania, Djibouti, Angola, Chad, Algeria, Sudan, Libya, Eritrea, Uganda, Rwanda, Burundi and the Seychelles. Mauritania, Western Sahara, Senegal, Gambia, Mali, Burkina Faso, Guinea, Guinea-Bissau, Cape Verde, Sierra Leone, Liberia, Côte d'Ivoire, Ghana, Togo, Benin, Niger, Nigeria , Namibia, Cameroon, Equatorial Guinea, Ethiopia, Kenya , Gabon and Zambia, Angola, Zimbabwe, Malawi, Mozambique, Botswana, and so on.



    South America:
    Colombia, Venezuela, Guyana, French Guiana, Suriname, Ecuador, Peru, Bolivia, Brazil, Chile, Argentina, Uruguay, Paraguay, Guatemala, Belize, El Salvador, Honduras, Nicaragua, Costa Rica, Panama, Antigua and Barbuda

    South Pacific:
    Papua New Guinea, Northern Mariana Islands, French Polynesia, Fiji, Guam, Heard and McDonald Islands, Kiribati, Cocos Islands, Cook Islands, Republic of the Marshall Islands, American Samoa, Microrony West Asia, Nauru, Niue, Norfolk Island, Palau, Pitcairn Islands, Samoa, Christmas Island, Solomon Islands, Tonga, Tuvalu, Tokelau, Wallis and Futuna, Vanuatu, New Caledonia.

    Asia countries:
    North Korea, Mongolia, including Vietnam, Laos, Cambodia, Myanmar, Thailand, Malaysia, Singapore, Indonesia, Philippines, Brunei, Sri Lanka, Maldives, Pakistan, India, Bangladesh, Nepal, Bhutan, Afghanistan, Iran, Azerbaijan, Armenia, Georgia, Turkey, Cyprus, Syria, Lebanon, Palestine, Jordan, Iraq, Kuwait, Saudi Arabia, Yemen, Oman, United Arab Emirates, Qatar, Bahrain, Turkmenistan, Uzbekistan, Kyrgyzstan, Tajikistan, Kazakhstan.



    Technical parameter

    drill depth 400m  hole diameter 500mm
    kelly 108×108×7500mm;
    drill rod Φ89×5500mm;
    mast 11.9mm
    mast max load 30t;
    main winch hook rated load 24t
    assistant winch hook rated load 16t
    main winch single rope pull force 40kN
    assistant winch single rope pull force 40kN
    rotary table inner diameter 500mm
    diesel engine Cummins diesel engine
    Emission  EU II
    rotary table speed Rotary speed 110;96;56;36;21;12rpmrpm(r/min);
    Max-walking speed 75(Km/h)
    rotary table torque 4.3;5;8.5;13.3;22.7;40kN(kN.m)
    Transport size(L*W*H) 12455*2480*3660
    generator 30kw, 400v , 1480 r/min



    Product picture

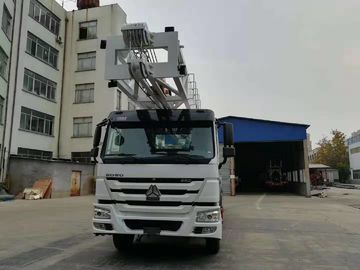

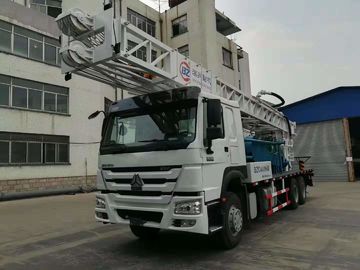

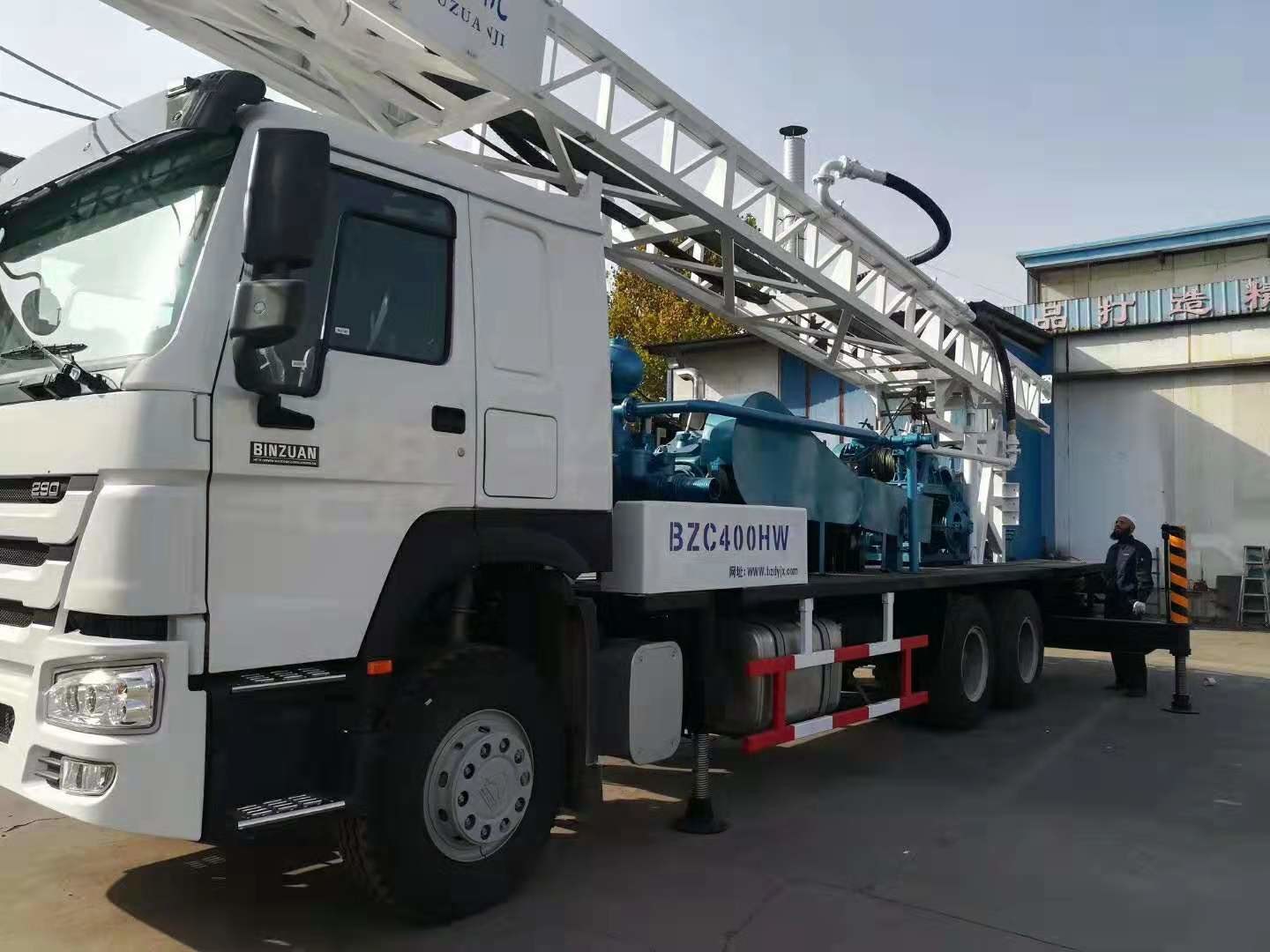

    BZC400CHW Truck Mounted Pile Drilling Machine 400m Depth Sinotruk Chassis 0BZC400CHW Truck Mounted Pile Drilling Machine 400m Depth Sinotruk Chassis 1BZC400CHW Truck Mounted Pile Drilling Machine 400m Depth Sinotruk Chassis 2
