27T 600m Rotary Pile Drilling Machine With Directional Circulation BZC600CLCA / Water Well Borehole

27T 600m Rotary Pile Drilling Machine With Directional Circulation BZC600CLCA / Water Well Borehole

    • 27T 600m Rotary Pile Drilling Machine With Directional Circulation BZC600CLCA  / Water Well Borehole
    • 27T 600m Rotary Pile Drilling Machine With Directional Circulation BZC600CLCA  / Water Well Borehole
    • 27T 600m Rotary Pile Drilling Machine With Directional Circulation BZC600CLCA  / Water Well Borehole
  • 27T 600m Rotary Pile Drilling Machine With Directional Circulation BZC600CLCA  / Water Well Borehole

    Product Details:

    Place of Origin: Shandong, China (Mainland)
    Brand Name: BINZUAN
    Certification: ISO900;SGS
    Model Number: BZC400CHW

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiable
    Packaging Details: nude
    Delivery Time: 70days
    Payment Terms: T/T, L/C
    Supply Ability: 2 Set/Sets per Quarter
    Contact Now
    Detailed Product Description
    Condition: New Voltage: 380V
    Weight: 27T Chassis: HOWO SINOTRUK
    Usage: Water Well Dimension(L*W*H): 15543x2480x4032mm
    High Light:

    pile driving equipment

    ,

    borehole drilling machine

    BZC600CLCA 600m good price deep water well drilling rig rotary drilling rig





    Quick details



    Condition:New

    Type:Rotary Drilling Rig

    Power Type:Diesel

    Place of Origin:Shandong, China (Mainland)

    Brand Name:BINZUAN

    Usage:Water Well

    Voltage:380V

    Dimension(L*W*H): 15543x2480x4032mm

    Weight:27T

    Certification:ISO900;SGS

    Warranty:1 Year

    After-sales Service Provided:Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service

    chassis:HOWO SINOTRUK

    depth:600m

    diameter:500mm





    Product Description

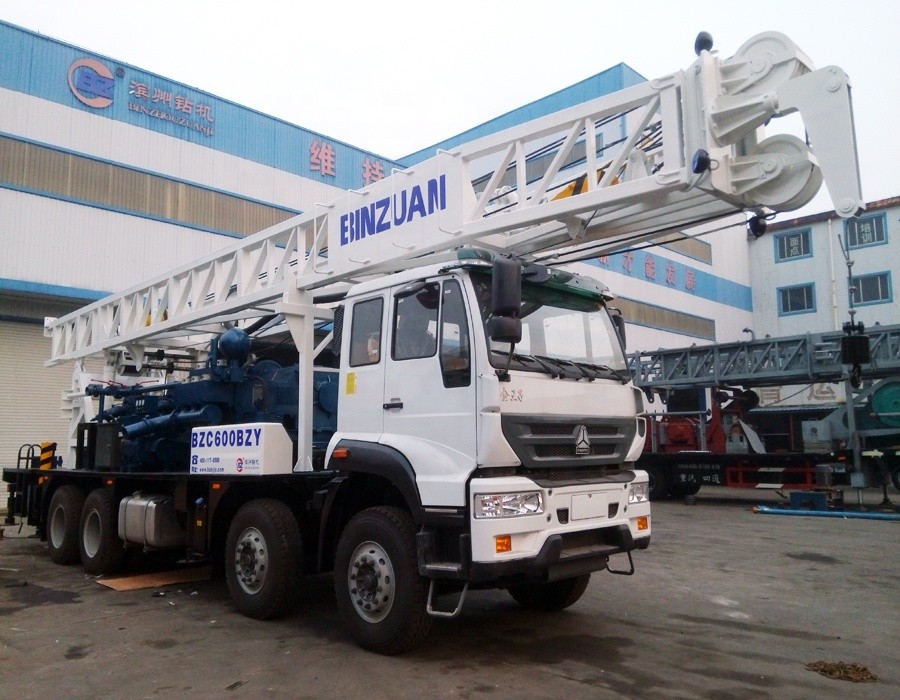

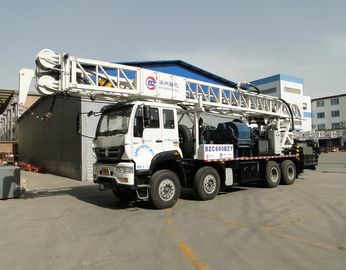

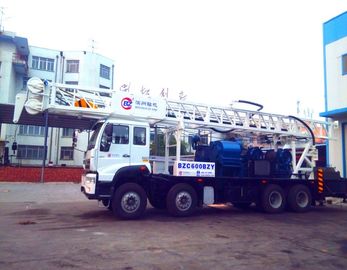

    BZC600CLCA truck mounted drilling rig is designed by our engineers. It is a kind of truck mounted and rotary drilling rig.

    - The truck chassis adopts the special crane chassis of brand CCAT 8X6 and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable, drilling tower, feed mechanism are set up on the chassis.

    - This rig is a rotary drilling rig with directional circulation. It is equipped with 3NB-130 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

    - The power of drilling rig comes from the truck engine; the rig has distribute implement and hydraulic system.

    -We install the spare electric engine and clutch implement according to client’s requirement, so that the rig can work with diesel engine or electric engine.-- We set up a generator (MF) which is convenient to illuminate or work at night.

    - There are pressure device on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.

    - The main drive of rig is mechanical and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are air operated.

    - According to client’s requirement, the rig can carry out down-the-hole hammer drilling with USA Sullair, Japan PDSKIOOS, Sweden Atlas, China Kaishan, Hongwuhuan; can carry out air lifting reverse circulation drilling with air-water tap, double-wall drilling pipe, gas-water separator; can carry out Hydraulic DTH hammer drilling rock breaking with mud pump; can carry out core-drilling with other special drilling tools.

    - The appearance of rig is pretty. It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.

    Technical parameter

    Drilling depth(M) 600
    Drilling diameter(mm) 500
    Speed of turntable(r/min) 117;102;60;38;22;13;16(reverse)
    Torque of turntable(KN.m) 5.4----50
    Single rope lifting capacity of main windlass(KN) 50
    Maximum lifting capacity of main windlass(KN) 300
    Single rope lifting capacity of assistant windlass(KN) 60
    Single rope lifting capacity of assistant windlass(KN) 240
    Rated lifting capacity of hook(KN) 300
    Rate Bearing capacity of drilling tower (KN) 320
    The height of drilling tower (mm) 15000
    Drill pipe Kelly bar(mm) 108×108×10500
    Assistant pipe (mm) .D89×10×9000





    3NB-130 mud pump



    Theoretical flow (L / min) 1000
    Rated pressure (Mpa) 5
    Input power (kw) 95
    Weight (kg) 3900
    Size (mm) 2160×1400×1300







    Truck chassis

    Drive form 8×6



    Engine

    Model YC6A260-33YC water-cooled four stroke diesel engine
    Rated power(KW) 191
    Speed (r/min) 2300
    Size (L*W*H)(mm) 11510*2480*2800
    Electric generator Model MF
    Rated power (kw) 30
    Rated voltage(v) 380
    Rated current(A) 27
    Speed (r/min) 1500
    Frequency(Hz) 75
    The highest speed(Km/h) 75
    Weight (kg) 27500
    Transport size(L*W*H)(mm) 15543×2480×4032
    Working size(L*W*H)(mm) 11139×2480×16749
