    Product Details:

    Place of Origin: Shandong, China (Mainland)
    Brand Name: Long Ye
    Certification: CE & ISO
    Model Number: SLY485

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: negotiable
    Packaging Details: Nude
    Delivery Time: 120 Set/Sets per Month
    Payment Terms: L/C, T/T
    Contact Now
    Detailed Product Description
    Dimension(L*W*H): 5800mm*2040mm*3200mm Hole Diameter: 127-254mm
    Working Pressure: 1.05-2.46Mpa Climb Ability: 25 Degree
    Axial Pressure: 40820N Certification: CE / ISO
    High Light:

    pile driving equipment

    ,

    borehole drilling machine

    Green Pile Drilling Machine SLY485 200 Meter Rock Drilling Rig Hydraulic Crawler High Speed Crawler Mounted



    Quick Details


    Condition: New

    Place of Origin: Shandong, China

    Brand Name: longye

    Model Number: SLY485

    Usage: industrial and agriculture water project

    Voltage: 220V

    Weight: 5.7

    Certification: CE / ISO

    Type: Rotary Drilling Rig

    Power Type: Diesel

    Dimension(L*W*H):5800mm*2040mm*3200mm

    Power(W):147000

    Hole diameter: 127-254mm

    hole depth: 213m

    Working Pressure: 1.05-2.46Mpa

    Air consumption: 16-30m3/min

    drill rod length: 3m

    drill rod diameter: 76mm

    climb ability: 25 degree

    walking speed: 2.5km/h

    axial pressure: 40820N

    lifting force: 68040N

    Warranty: one year

    After-sales Service Provided: Engineers available to service machinery overseas



    Product Description



    200 m crawler water well drilling rigs with all accessories parts for sale in uk is lightweight, efficient, multi-purpose drilling equipment, which can use air,foam,or mud rotary for percussive drilling according to different textures. It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes, in particular, in drilling hole for geothermal heating,200 m crawler water well drilling rigs with all accessories parts for sale in uk can also meet the engineering basis for reinforcement, loose gravel drilling, rock formation drilling and a variety of engineering requirements.



    Technical parameters



    Bore Diameter(mm) 115-300
    Bore Depth(m) 200
    Walk Speed(km/h) 0-2.5
    For Rock(F) 6-20
    Air Pressure(Mpa) 1.05-3.0
    Air Consumption(m³/min) 16-30
    Once Promotion(mm) 3000
    Skid Max Tilt Angle(°) 90
    Maximum Height From The Ground(mm) 320
    Rotation Speed(r/min) 0-100
    Rotation Torque(NM) 3900
    Lifting Power(T) 8
    Climb Ability(°) 25
    Dimension(L*W*H)(mm) 4900*1600*2400
    Weight(Kg) 5700



    Products pictures

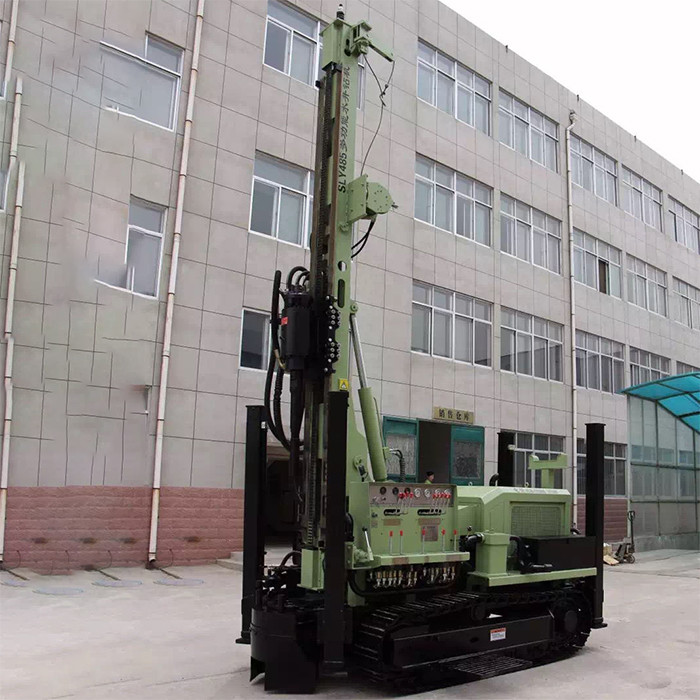

    Green Pile Drilling Machine / SLY485 200 Meter Rock Drilling Rig High Speed Crawler Mounted 0Green Pile Drilling Machine / SLY485 200 Meter Rock Drilling Rig High Speed Crawler Mounted 1Green Pile Drilling Machine / SLY485 200 Meter Rock Drilling Rig High Speed Crawler Mounted 2

    Green Pile Drilling Machine / SLY485 200 Meter Rock Drilling Rig High Speed Crawler Mounted 3

    Green Pile Drilling Machine / SLY485 200 Meter Rock Drilling Rig High Speed Crawler Mounted 4

    Green Pile Drilling Machine / SLY485 200 Meter Rock Drilling Rig High Speed Crawler Mounted 5
