| Place of Origin: | CHINA |
| Brand Name: | SINOTRUK HOWO |
| Certification: | ISO9001 |
| Model Number: | ZZ5707S3840AJ |
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 UNITS/Month |
| Engine:: | WD615.47,371hp | Cab:: | HOWO7D, With Air Conditioner |
|---|---|---|---|
| Cargo Body Size:: | 5900X3100X1800 | Gross Vehicle Weight:: | 50000kg |
| Max.driving Speed:: | 63 Km/h | Engine Capacity:: | 9.726 |
| High Light: | diesel dump truck,sinotruk howo dump truck |
||

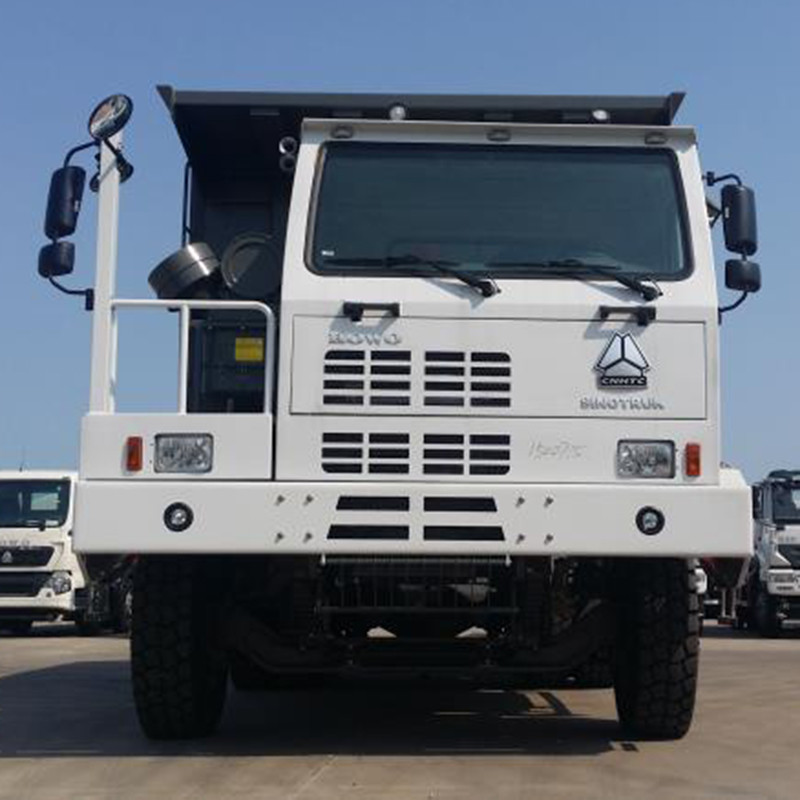

New 371 hp Howo 6x4 Mining Dump Truck With 3.6m Wheelbase And HOWO 7D Cabin
Description:
HOWO brand water Truck is produced by SINOTRUK.Adopt WD615 series of 6-cylinder in line, 4-stroke, water cooled, turbo-charged inter-cooled,direct injection engine.Have good power economy.
And the brake system have huge advantages.Service brake:dual circuit compressed air brake
Parking brake (emergency brake):spring energy,compressed air operating on rear wheels
Auxiliary brake:engine exhaust valve brake., and it can achieve continuously variable transmission.Rich experience and well after-sale service.
(1) The overseas engineers are always ready to deal with unexpected needs.
(2) More than 40 years' experience as a manufacturer, more than 12 years exporting experience.
(3) Products Quality Certification SGS CCC ISO
(4) Export to more than 30 countries and regions
(5) Regularly callback to know the vehicle's working status.
Packing:
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
1. Question: What's your payment term?
Answer: We accept T/T(30% down payment and balance before shipping) and L/C mostly. But if you prefer other payment terms please contact us for further information.
2. Question: How about the delivery time?
Answer: Fot the HOWO mining dump truck for coal we will ship it in 40 days after down payment.
3. Whats's the warranty time?
Answer: We provide one year warranty for the mining dump truck.
4. How do you offer the after sale service?
Answer: We offer after sale service life long. Engineers are available to go abroad for training and spare parts will be sent at the soonest.
| Model No | ZZ5707S3840AJ | |||
| Cab | HOWO7D Air conditioner | |||
| Engine | Model | WD615.47 | ||
| Power(PS/RPM) | EUROII 273/2200 | |||
| Displacement(L) | 9.726 | |||
| Transmission | HW19710 | |||
| Front axle | HF12 Max.loading:12000kg | |||
| Rear axle | AC26 Max.loading:26000 kg | |||
| Steering gear | ZF8098 | |||
| Electric system | Voltage | 24V, negative grounded | ||
| Batteries | 2*12V/135Ah | |||
| Starter power | 24V/5.4KW | |||
| Wheels and Tyres | 14.00-25 | |||
| Fuel tank (L) | 300 | |||
| Carriage Internal Dimensions(mm) | Steel thickness of Carriage |
Floor:12 Side:8 |
||
| Cargo Dimensions | 4300*2300*1600 | |||
| Weight(Kg) | Gross Vehicle Weight | 100000 | ||
| Cerb Weight | 29000 | |||
| Vehicle Dimensions (mm) | Overall L*W*H | 8700*3300*4340 | ||
| Wheelbase(mm) | 3625+1350 | |||
| Performance | Maximum speed(km/h) | 63Km/h | ||
Reference pictures:
