CCC Underground Mining Dump Truck 4x4 With Yunnei 490 Engine And Exhaust Purifier

CCC Underground Mining Dump Truck 4x4 With Yunnei 490 Engine And Exhaust Purifier

    • CCC Underground Mining Dump Truck 4x4 With Yunnei 490 Engine And Exhaust Purifier
    • CCC Underground Mining Dump Truck 4x4 With Yunnei 490 Engine And Exhaust Purifier
    • CCC Underground Mining Dump Truck 4x4 With Yunnei 490 Engine And Exhaust Purifier
    • CCC Underground Mining Dump Truck 4x4 With Yunnei 490 Engine And Exhaust Purifier
  • CCC Underground Mining Dump Truck 4x4 With Yunnei 490 Engine And Exhaust Purifier

    Product Details:

    Place of Origin: CHINA
    Brand Name: LN
    Certification: CCC
    Model Number: LN1665T

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 UNIT
    Price: Negotiable
    Packaging Details: Nude
    Delivery Time: 30-45 work days
    Payment Terms: L/C, T/T
    Supply Ability: 500 UNITS/Month
    Contact Now
    Detailed Product Description
    Type Of Fuel:: Diesel Engine:: Yunnei 490
    Load:: 5t Size Of The Loading Box:: 2850*1600*500(mm)
    Treatment Of Tail Gas:: Exhaust Purifier Condition:: New

    4x4 5tons Euro 2 Underground Mining Dump Truck With Yunnei 490 Engine And Exhaust Purifier

    Description:



    Cab can be specially adjusted: our group can analyze your special provisions for your special specialization of different cab, suitable for your walking environment and ensure the safety of the driver rest assured.



    Can be widely used in the environment: my group sibuxiang car is widely used in mining, mine, mine, mountain climbing, rural roads and other environments.



    Diesel engine: drive robust, adopt special material selection, small size, light weight, small vibration. Analyzing the difference of power and performance, we can choose single cylinder internal combustion engine, double cylinder engine and 4112 diesel engine.



    Filter function: if you order the four not like the car is located in the mine metal mine work, but also can help you to assemble tail gas water processor, guard the air flow quality of walking environment.



    Gearbox: our group adopts special order, wanliyang, Faust and other high quality brand gearbox, the shift is as natural as the car.



    Packing:



    Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

    Product Features:

    1. 24Hours after-sales service by email or phone.

    2. 100% Response rate.

    3. Our customer-oriented sales and technical team are always at your service

    4. OEM Service available

    5. Warranty: 12 months warranty , beyond the warranty period, all spare parts offered to you with our cost price (not including freight).



    Specification:



    Product Model: LN1665T
    Type of fuel: Diesel
    Driver's seat position: Side driving
    Engine: Yunnei 490
    Engine power: 48KW(65 horsepower.)
    Type of gearbox: 530(Twelve stalls.)
    Drive Mode: Rear wheel drive
    Brake mode: Breathing Brake
    Unloading: Rear unloading
    Front tire size: 700-16 Mine tyres
    Size of rear Tyre: 700-16 Double tire.
    Vehicle size: 4600*1630*1550(mm)
    Size of the loading box: 2850*1600*500(mm)
    Loading box configuration: Thick steel plate at bottom, T = 8mm
    Steering wheel power type: Hydraulic power steering
    Plate spring: 13 pieces * 70 mm wide * 12 mm thick
    Boxes volume: 2.3 cubic meters
    Climbing ability: 12 degrees.
    Car load: 5t
    Treatment of tail gas: Exhaust purifier
    Chassis: height:120mm width:60mm Plate thickness:8mm
    Distance to ground height: 200mm

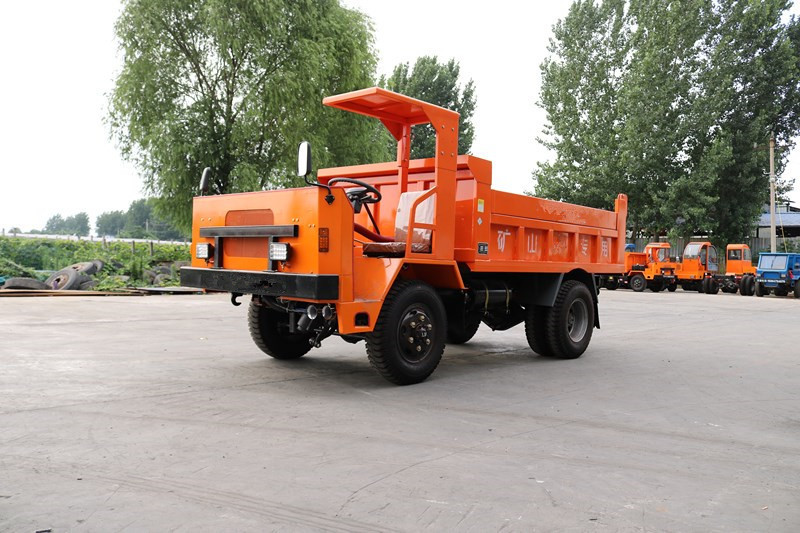

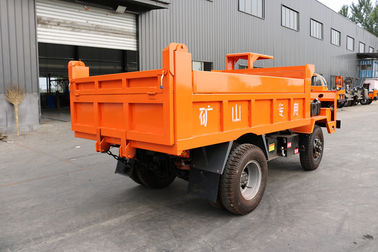

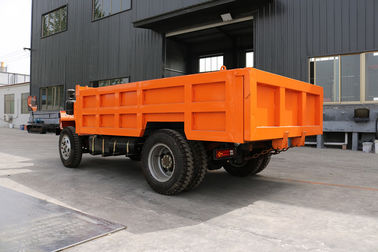

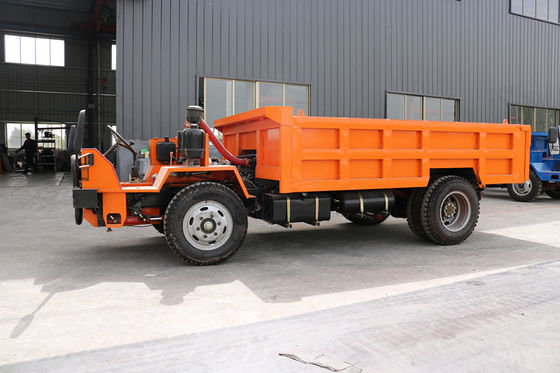

     Reference pictures:



    CCC Underground Mining Dump Truck 4x4 With Yunnei 490 Engine And Exhaust PurifierCCC Underground Mining Dump Truck 4x4 With Yunnei 490 Engine And Exhaust Purifier
